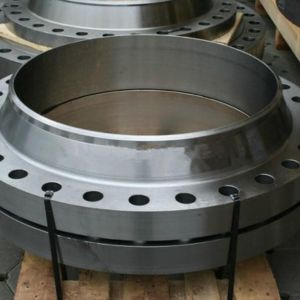

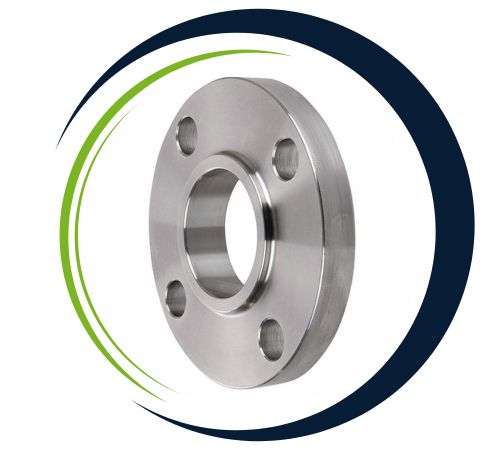

If you’re on the hunt for **Incoloy 825 forged flanges** in **Canberra, Australia**, you’re in luck! There are several trusted suppliers and manufacturers ready to meet your needs. Incoloy 825 is celebrated for its outstanding resistance to corrosion and oxidation, making it a go-to choice in industries like chemical processing, marine applications, and pollution control.
Incoloy Forged Flanges are composed primarily of nickel, iron, and chromium, with small amounts of molybdenum, copper, and titanium. This composition provides excellent resistance to oxidation, corrosion, and high-temperature environments. The mechanical properties of Incoloy Forged Flanges include high tensile strength, excellent creep and stress rupture resistance, and good weldability, making them suitable for demanding applications. Advantages of Incoloy Forged Flanges include exceptional durability in extreme environments, resistance to sulfur and acid attack, and superior performance in high-pressure and high-temperature conditions. These properties make them ideal for industries such as aerospace, chemical processing, and power generation.
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B564 X-750 Inconel Flanges |
| Grades | Incoloy 825/ 800/ 800H/800HT |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
* **Overview**: They focus on manufacturing and supplying Incoloy flanges, including ASTM B564 Incoloy 825 forged flanges. * **Global Reach**: They export to more than 60 countries, Australia included. * **Product Range**: You can find a variety of flange types here, such as slip-on, welding neck, blind, socket weld, and threaded flanges. * **Standards**: They adhere to international standards like ASME/ASTM/API. * **Website**: [Honesty Metal Industries](https://www.honestymetalin.com/inconel-flanges/)
Incoloy Forged Flanges are commonly used in industries that require high resistance to corrosion, heat, and pressure. They are ideal for applications in chemical processing, power generation, oil and gas, and petrochemical industries, where exposure to extreme temperatures and aggressive chemicals is frequent. These flanges are used in pipelines, pressure vessels, heat exchangers, and reactors. Their resistance to oxidation, sulfur, and acidic environments makes them a preferred choice for connecting pipes, valves, and fittings in high-performance systems. Incoloy Forged Flanges are also utilized in aerospace and marine applications, where strength and durability are essential.
| STANDARD | MATERIAL NO. | US | HE | BS | GUEST | AFNOR | IN | OR |
|---|---|---|---|---|---|---|---|---|
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | THAT’S 15 | EI670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | EI670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | EI670 | – | X8NiCrAlTi32-21 | XH32T |
| Incoloy 825 | 2.4858 | N08825 | NCF 825 | THAT’S 16 | EP703 | NFE30C20DUM | NiCr21Mo | XH38BT |
| ASME/ANSI B 16.5 | Forged Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Forged Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Forged Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Forged |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Forged Flanges |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
* **Overview**: A leading exporter of industrial flanges made from various materials, including Incoloy 825. * **Product Specifications**: They offer flanges in sizes from ½” (15 NB) to 48” (1200 NB), following standards like ANSI B16.5, ANSI B16.47, and DIN. * **Industries Served**: Their products cater to sectors such as oil & gas, petrochemical, and power generation. * **Website**: [Creative Piping Solutions]
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
