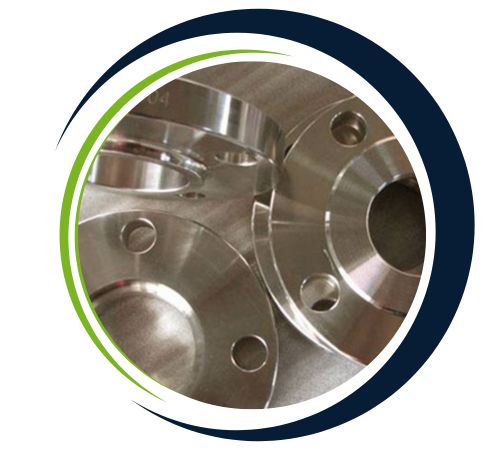

Steve Flanges stands out as a top-notch manufacturer and supplier of Incoloy Socket Weld Flanges right in Canberra, Australia. They’ve built a solid reputation for their precision engineering, exceptional quality, and a service approach that puts customers first. With years of experience under their belt, Steve Flanges delivers durable, corrosion-resistant products that meet international standards. They specialize in Incoloy flanges that are perfect for high-temperature and high-pressure settings. Thanks to their state-of-the-art manufacturing facilities and a talented team of professionals, Steve Flanges guarantees reliable performance, precise dimensions, and timely deliveries, making them a go-to name in Australia’s industrial and engineering sectors.
The Incoloy Socket Weld Flanges from Steve Flanges are crafted primarily from nickel, iron, and chromium, with added molybdenum, titanium, and copper to boost strength and corrosion resistance. These materials offer excellent oxidation resistance and mechanical stability, even in extreme conditions. The flanges boast high tensile strength, impressive creep resistance, and remarkable toughness, even at elevated temperatures. Their mechanical properties make them a perfect fit for demanding industrial applications where durability, weldability, and structural integrity are crucial.
Specifications : ASTM B564 / ASME SB564
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class/Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

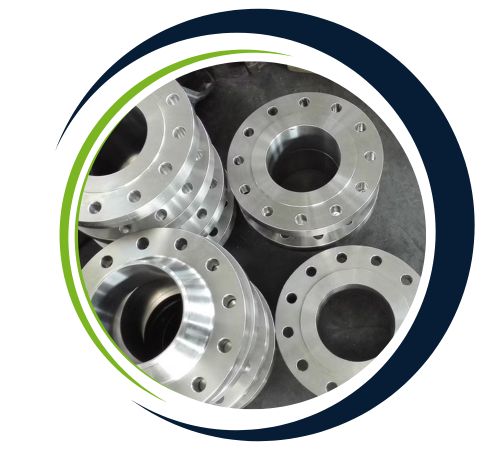

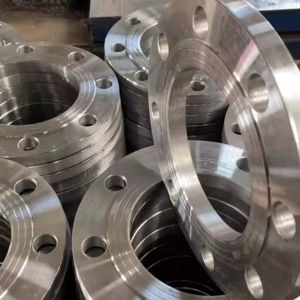

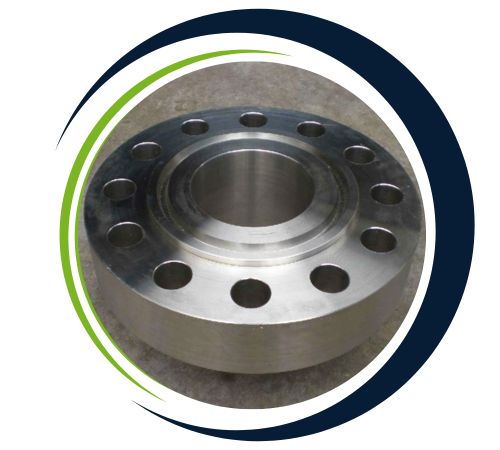

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Type : Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Flat flange, Industrial flanges, Plate flange, ASME B16.5 flanges.

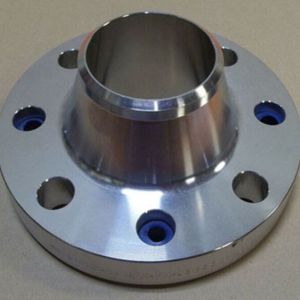

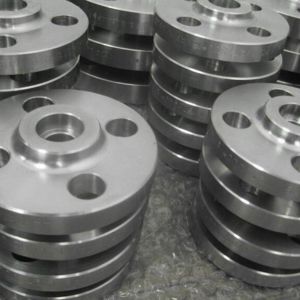

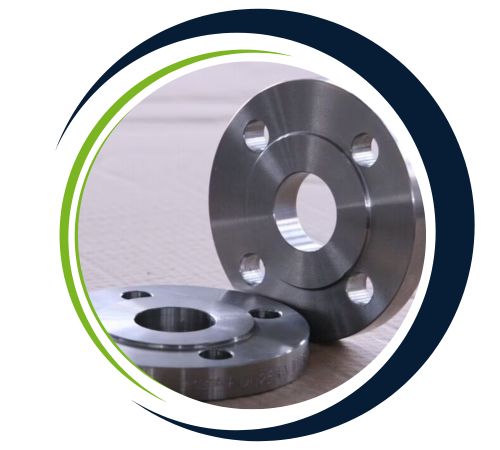

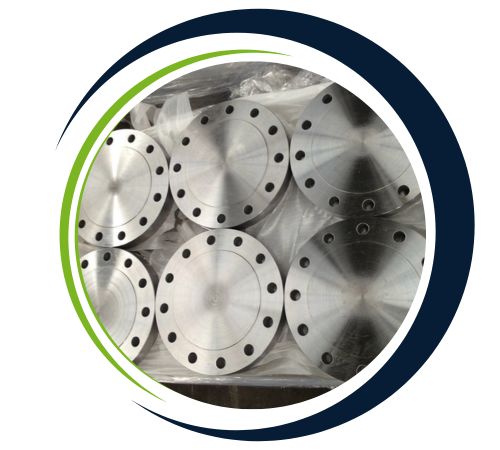

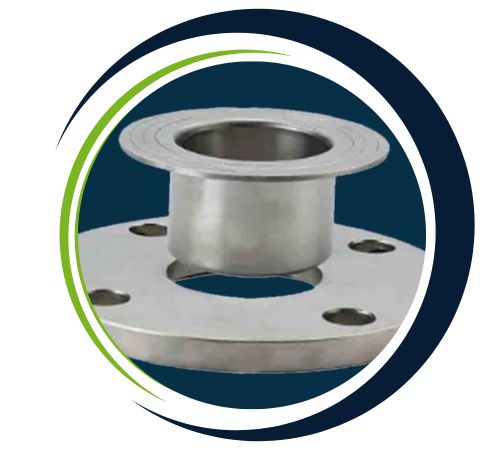

Steve Flanges, a leading supplier in Canberra, Australia, offers an extensive selection of Incoloy 800/800H/800HT Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30 – 35 | 19 – 23 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30 – 35 | 19 – 23 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30 – 35 | 19 – 23 | 0.15 – 0.60 | 0.15 – 0.60 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
Incoloy 800, 800H and 800HT flanges are used extensively in high-temperature and hot environment applications. Their superior oxidation and carburization resistance makes them best suited for furnace parts, heat exchangers and petrochemical processes. In electrical power generation, these flanges are employed in reheaters and superheaters, where stability at high temperatures is necessary. Furthermore, they find application in chemical and nuclear plants, with equipment being exposed to acid and sulfur environments. Their strength and resistance to thermal stresses guarantee durability in sophisticated applications involving long-term usage.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
Manufactured in Canberra, Australia, Steve Flanges’ Incoloy Socket Weld Flanges are widely utilized in industries that need strong and corrosion-resistant connections. They’re particularly suited for chemical processing, power generation, marine engineering, heat exchangers, oil and gas refineries, and nuclear plants. Their outstanding resistance to oxidation and scaling in high-temperature environments ensures they perform reliably and have a long service life. Incoloy socket weld flanges are especially ideal for pipelines that transport acidic or corrosive fluids. With their precise fit and robust weld joint, they create a leak-free and secure connection for critical industrial operations.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
