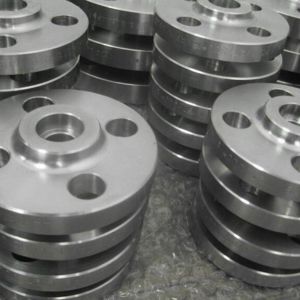

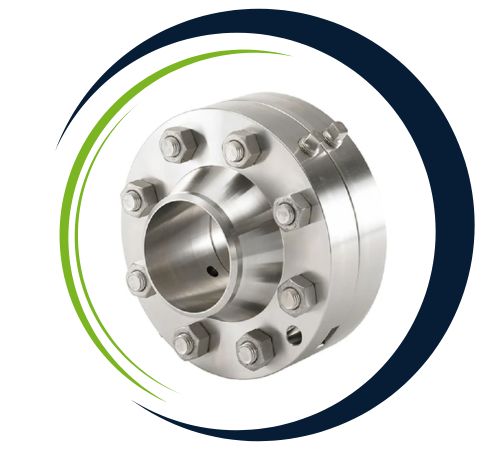

Incoloy 825 flanges are unique components crafted from a nickel-iron-chromium alloy, enhanced with molybdenum, copper, and titanium. These flanges are known for their outstanding resistance to corrosion, oxidation, and stress-corrosion cracking, making them perfect for tough environments like chemical processing, marine engineering, and pollution control systems.
Incoloy 825 flanges consist mainly of nickel (38-46%), steel and chromium, to which molybdenum, copper and titanium are added to improve their performance. This alloy offers excellent resistance to pitting, stress corrosion cracking and oxidation. Mechanically, Incoloy 825 possesses a tensile strength of around 550 MPa and a yield strength of around 220 MPa, with an expansion of around 30% The flanges maintain stability and strength at elevated temperatures. Benefits are good resistance to environmental corrosion, acidity and seawater, which makes it suitable for chemical processing, oil and gas, and marine spatial uses which is critical for reliability
Specifications : ASTM B564 / ASME SB564
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class/Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

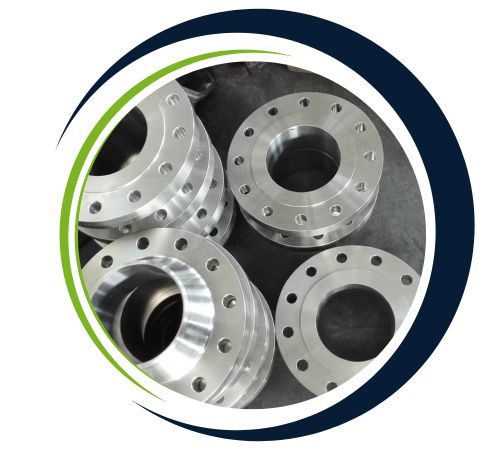

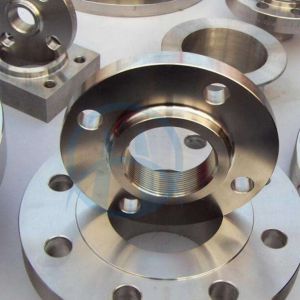

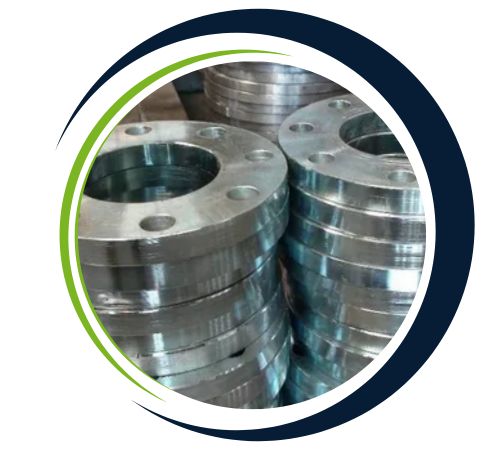

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

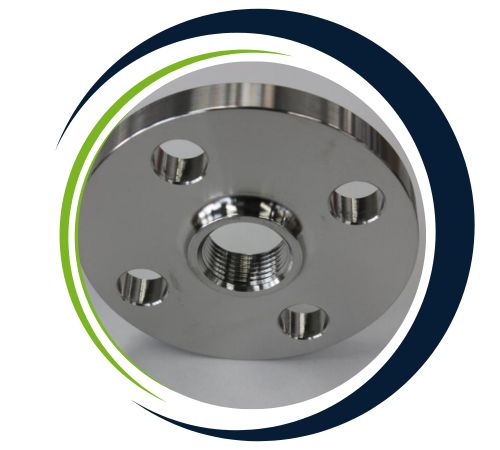

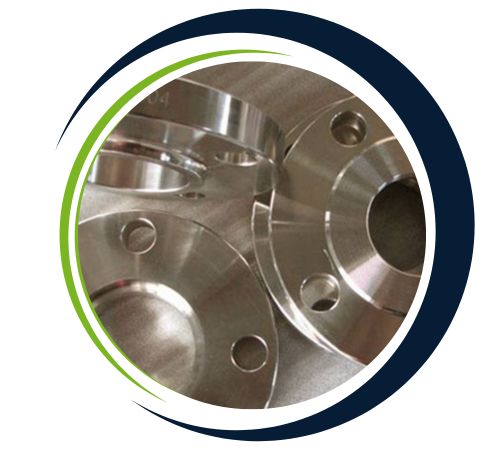

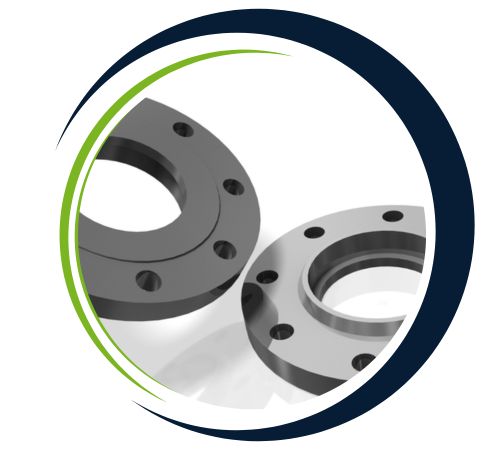

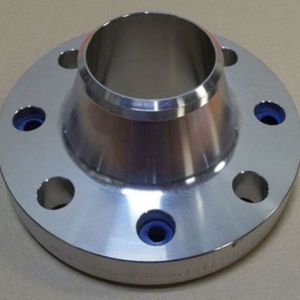

Type : Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Flat flange, Industrial flanges, Plate flange, ASME B16.5 flanges.
* **Honesty Metal Industries**: They focus on manufacturing and supplying Incoloy flanges, including ASTM B564 Incoloy 825 flanges, to over 60 countries, Australia included. They offer a variety of flange types such as slip-on, welding neck, blind, socket weld, and threaded flanges. ([honestymetalin.com][1])
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3 | 22.00 min | 38 – 46 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
Incoloy 825 flanges find extensive use in situations where there is a need for high corrosion resistance and high temperatures. They are best suited for the petroleum and chemical industries, where phosphoric and sulfuric acids are well managed. In the oil and gas industry applications, these flanges find application in pipelines because of their stress resistance, corrosion and cracking resistance in offshore acid and gas conditions besides their efficiency in mechanical fouling, heat exchangers, nuclear fuel reprocessing and marine engineering. Their turbulence resistance in environments guarantees reliability and durability even in extreme operating conditions.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo | XH38BT |
* **Kinnari Steel Corporation (KSC)**: This privately owned manufacturer and exporter specializes in stainless steel and alloy steel products, including Incoloy 825 pipe fittings and flanges. They have a large inventory of standard Incoloy 825 pipe fittings and flanges. ([kinnaristeel.com][2])
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
