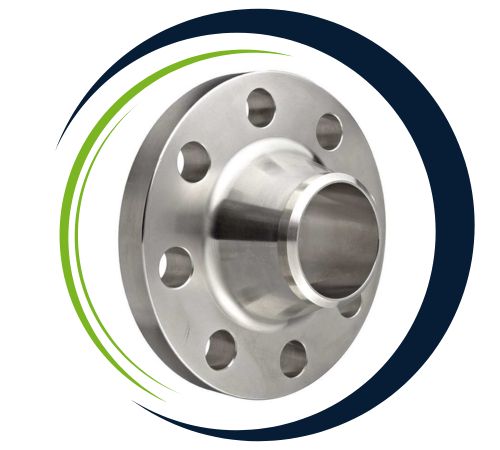

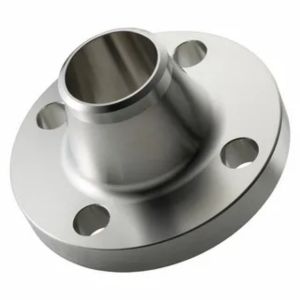

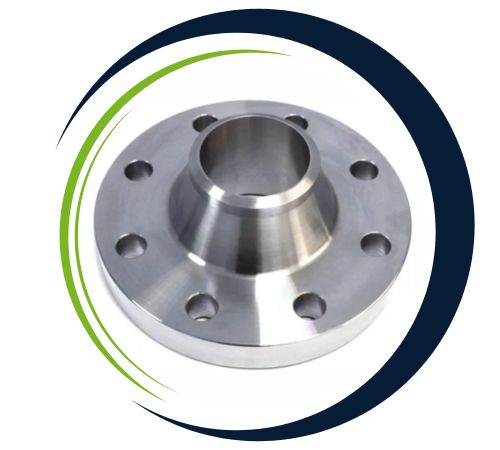

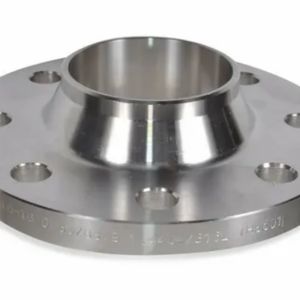

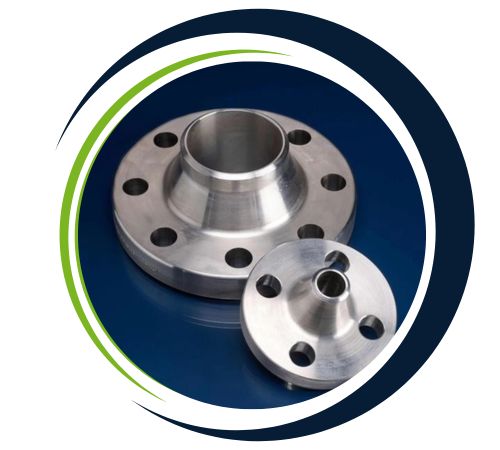

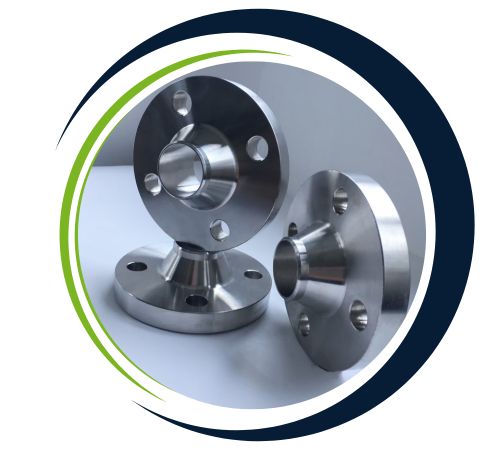

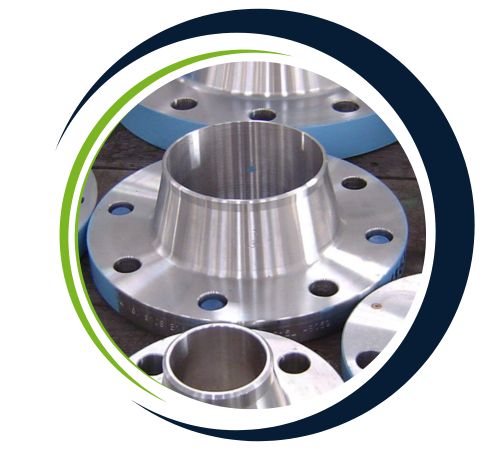

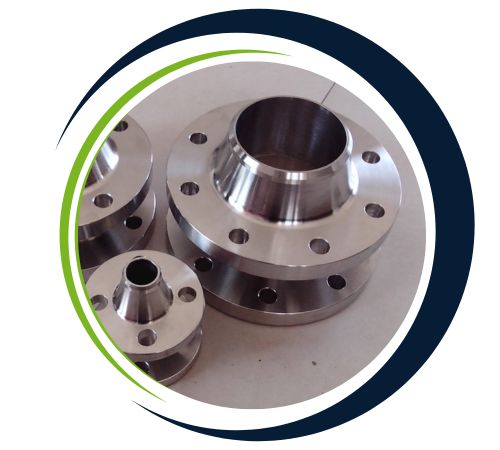

Steve Flanges is a well-respected manufacturer and supplier of **Super Duplex Steel Weldneck Flanges** based in Canberra, Australia. They specialize in providing high-performance solutions tailored for critical industrial applications. These flanges feature a long tapered hub that promotes smooth stress distribution between the pipe and the flange, making them perfect for high-pressure and high-temperature settings. Renowned for their remarkable strength, corrosion resistance, and durability, Super Duplex Weldneck Flanges come in various sizes, pressure classes, and specifications. Steve Flanges serves a diverse range of industries, including oil and gas, petrochemical, marine, and power generation, ensuring top-notch quality and reliability.
The makeup of **Super Duplex Steel Weldneck Flanges** generally consists of 24–26% chromium, 6–8% nickel, 3–5% molybdenum, along with controlled amounts of nitrogen and other trace elements. This well-balanced alloy offers outstanding resistance to pitting, crevice, and chloride stress corrosion. On the mechanical side, these flanges boast a high tensile strength of around 800 MPa, a yield strength of about 550 MPa, and impressive impact toughness, even in low temperatures. Their dual-phase microstructure significantly improves weldability, fatigue resistance, and structural integrity under demanding service conditions.
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSuper Duplex Steel S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, S32750 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSuper Duplex Steel SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSuper Duplex Steel SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSuper Duplex Steel SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM A182 Super Duplex Steel S32760 Super Duplex Steel Flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Grades | Super Duplex Steel S32750, S32950, S32760, F52, F53, F55, F52 |
Steve Flanges, a leading supplier in Canberra, Australia, offers an extensive selection of Super Duplex Steel weldneck flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
**Super Duplex Steel Weldneck Flanges** are commonly utilized in industries where strength, durability, and corrosion resistance are paramount. Typical applications include offshore oil and gas platforms, petrochemical and chemical processing plants, marine engineering, desalination units, and power generation facilities. Their weldneck design ensures a secure, leak-proof connection that’s ideal for high-pressure piping systems. These flanges facilitate smooth fluid flow, minimize turbulence, and boost system efficiency. They are particularly favored in harsh environments where exposure to chloride-rich and corrosive media demands long-lasting, reliable performance.
| ASME/ANSI B 16.5 | Welding Neck Flange |
| PRESSURE CLASS | 150, 300, 400, S32750, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, S32750, 900 |
| ASME/ANSI B 16.36 | Welding Neck Flange |
| PRESSURE CLASS | 300, 400, S32750, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, S32750, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Super Duplex Steel Weldneck flanges to meet specific project needs. Our team at Steve Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@steveflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
