Steve Flanges stands out as a top manufacturer and supplier of **Super Duplex Steel S32750 Flanges** in Canberra, Australia. They specialize in providing high-quality flange solutions that are built to offer exceptional strength and resist corrosion. These flanges are crafted to excel in tough and corrosive settings, ensuring they remain reliable and have a long lifespan. With impressive mechanical properties and a strong resistance to chloride-induced corrosion, Super Duplex S32750 Flanges come in a variety of sizes, pressure ratings, and specifications. Steve Flanges caters to essential industries like oil and gas, petrochemical, power generation, and marine, making sure their products meet global quality standards.
The makeup of **Super Duplex Steel S32750 Flanges** generally consists of 24–26% chromium, 6–8% nickel, 3–5% molybdenum, along with controlled amounts of nitrogen and other trace elements. This well-balanced chemical composition gives them remarkable resistance to pitting, crevice, and stress corrosion cracking. On the mechanical side, these flanges boast high tensile strength (around 800 MPa), yield strength (about 550 MPa), and outstanding impact toughness. Their dual-phase microstructure improves fatigue resistance, weldability, and structural stability, making them perfect for high-pressure and aggressive environments.
Specifications : ASTM A182 / ASME SA182
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Size : 1/8″ NB TO 24″ NB
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Grades : S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61

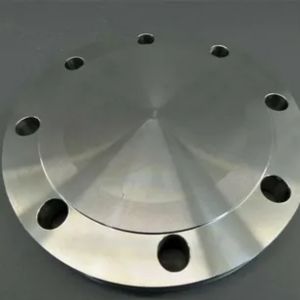

Steve Flanges, a leading supplier in Canberra, Australia, offers an extensive selection of Super Duplex Steel S32750 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32750 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32750 | 7.8 | 0.281 | 1350 | 2460 |
**Super Duplex Steel S32750 Flanges** are commonly found in industries that require high strength, durability, and corrosion resistance. They are particularly suited for offshore and onshore oil and gas operations, chemical and petrochemical processing, desalination plants, marine engineering, and power generation systems. Their excellent resistance to chloride stress corrosion makes them ideal for seawater and other harsh conditions. These flanges ensure strong, leak-proof connections in piping systems, promoting smooth fluid flow, minimizing maintenance, and delivering reliable performance even under high pressure and temperature.
| Nom. Pipe Size | O | T | R | X | No./Dia. of Holes | Bolt Circle Dia. | L2 | H | B2 | L | B | r | L3 | B3 | D |
| 1/2 | 3.5 | 0.44 | 1.38 | 1.19 | 4-0.62 | 2.38 | 1.88 | 0.84 | 0.62 | 0.62 | 0.88 | 0.12 | 0.62 | 0.9 | 0.38 |
| 3/4 | 3.88 | 0.5 | 1.69 | 1.5 | 4-0.62 | 2.75 | 2.06 | 1.05 | 0.82 | 0.62 | 1.09 | 0.12 | 0.62 | 1.11 | 0.44 |
| 1 | 4.25 | 0.56 | 2 | 1.94 | 4-0.62 | 3.12 | 2.19 | 1.32 | 1.05 | 0.69 | 1.36 | 0.12 | 0.69 | 1.38 | 0.5 |
| 1-1/4 | 4.62 | 0.62 | 2.5 | 2.31 | 4-0.62 | 3.5 | 2.25 | 1.66 | 1.38 | 0.81 | 1.7 | 0.19 | 0.81 | 1.72 | 0.56 |
| 1-1/2 | 5 | 0.68 | 2.88 | 2.56 | 4-0.62 | 3.88 | 2.44 | 1.9 | 1.61 | 0.88 | 1.95 | 0.25 | 0.88 | 1.97 | 0.62 |
| 2 | 6 | 0.75 | 3.62 | 3.06 | 4-0.75 | 4.75 | 2.5 | 2.38 | 2.07 | 1 | 2.44 | 0.31 | 1 | 2.46 | 0.69 |
| 2-1/2 | 7 | 0.88 | 4.12 | 3.56 | 4-0.75 | 5.5 | 2.75 | 2.88 | 2.47 | 1.12 | 2.94 | 0.31 | 1.12 | 2.97 | 0.75 |
| 3 | 7.5 | 0.94 | 5 | 4.25 | 4-0.75 | 6 | 2.75 | 3.5 | 3.07 | 1.19 | 3.57 | 0.38 | 1.19 | 3.6 | 0.81 |
| 3-1/2 | 8.5 | 0.94 | 5.5 | 4.81 | 8-0.75 | 7 | 2.81 | 4 | 3.55 | 1.25 | 4.07 | 0.38 | 1.25 | 4.1 | 0.88 |
| 4 | 9 | 0.94 | 6.19 | 5.31 | 8-0.75 | 7.5 | 3 | 4.5 | 4.03 | 1.31 | 4.57 | 0.44 | 1.31 | 4.6 | 0.94 |
| 5 | 10 | 0.94 | 7.31 | 6.44 | 8-0.88 | 8.5 | 3.5 | 5.56 | 5.05 | 1.44 | 5.66 | 0.44 | 1.44 | 5.69 | 0.94 |
| 6 | 11 | 1 | 8.5 | 7.56 | 8-0.88 | 9.5 | 3.5 | 6.63 | 6.07 | 1.56 | 6.72 | 0.5 | 1.56 | 6.75 | 1.06 |
| 8 | 13.5 | 1.12 | 10.62 | 9.69 | 8-0.88 | 11.75 | 4 | 8.63 | 7.98 | 1.75 | 8.72 | 0.5 | 1.75 | 8.75 | 1.25 |
| 10 | 16 | 1.19 | 12.75 | 12 | 12-1.00 | 14.25 | 4 | 10.75 | 10.02 | 1.94 | 10.88 | 0.5 | 1.94 | 10.92 | 1.31 |
| 12 | 19 | 1.25 | 15 | 14.38 | 12-1.00 | 17 | 4.5 | 12.75 | 12 | 2.19 | 12.88 | 0.5 | 2.19 | 12.92 | 1.56 |
| 14 | 21 | 1.38 | 16.25 | 15.75 | 12-1.12 | 18.75 | 5 | 14 | 13.25 | 2.25 | 14.14 | 0.5 | 3.12 | 14.18 | 1.63 |
| 16 | 23.5 | 1.44 | 18.5 | 18 | 16-1.12 | 21.25 | 5 | 16 | 15.25 | 2.5 | 16.16 | 0.5 | 3.44 | 16.19 | 1.75 |
| 18 | 25 | 1.56 | 21 | 19.88 | 16-1.25 | 22.75 | 5.5 | 18 | 17.25 | 2.69 | 18.18 | 0.5 | 3.81 | 18.2 | 1.94 |
| 20 | 27.5 | 1.69 | 23 | 22 | 20-1.25 | 25 | 5.69 | 20 | 19.25 | 2.88 | 20.2 | 0.5 | 4.06 | 20.25 | 2.13 |
| 22 | 29.5 | 1.81 | 25.25 | 24.25 | 20-1.38 | 27.25 | 5.88 | 22 | 21.25 | 3.13 | 22.22 | 0.5 | 4.25 | 22.25 | 2.38 |
| 24 | 32 | 1.88 | 27.25 | 26.12 | 20-1.38 | 29.5 | 6 | 24 | 23.25 | 3.25 | 24.25 | 0.5 | 4.38 | 24.25 | 2.5 |
Yes, we offer custom sizes for Super Duplex Steel S32750 Flanges to meet specific project needs. Our team at Steve Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@steveflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
