Steve Flanges, a top-notch manufacturer and supplier located in Canberra, Australia, has earned a stellar reputation for crafting high-performance Monel K500 Flanges that adhere to rigorous international quality standards. These flanges are made from premium-grade Monel K500 alloy, which offers outstanding strength, corrosion resistance, and durability. Thanks to cutting-edge manufacturing technology and meticulous engineering, Steve Flanges guarantees that every product performs exceptionally well in tough and corrosive environments. Industries that rely on dependable, long-lasting connections in critical systems exposed to seawater, chemicals, and high-pressure conditions trust the company’s Monel K500 Flanges.
Monel K500 Flanges are primarily made of nickel and copper, with aluminum and titanium added to boost strength and hardness. This unique blend provides remarkable resistance to seawater, acids, and alkaline environments while ensuring high tensile and yield strength. The alloy showcases impressive mechanical properties, including toughness and resistance to stress-corrosion cracking, even in sub-zero temperatures. Its non-magnetic characteristics and ability to maintain strength in both hot and cold conditions make Monel K500 perfect for demanding industrial applications.
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, k500 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |

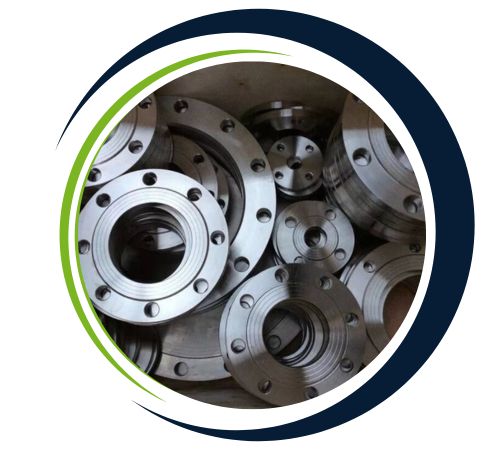

| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |

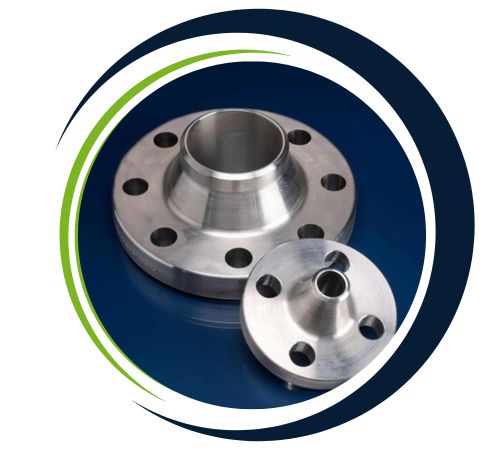

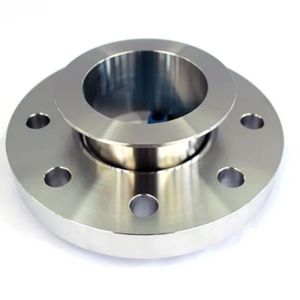

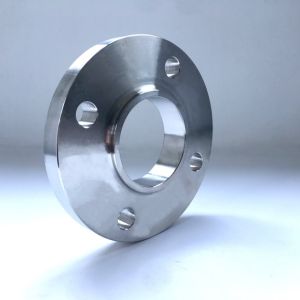

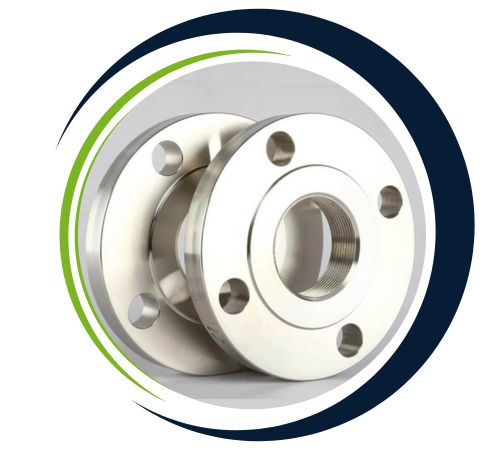

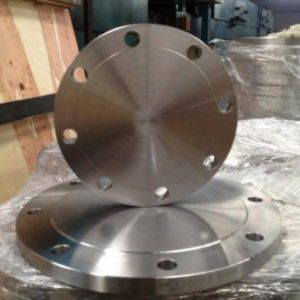

Steve Flanges, a leading supplier in Canberra, Australia, offers an extensive selection of Monel K500 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Monel K500 Flanges are widely used in applications where high strength, corrosion resistance and durability are required. These flanges are ideal for use in marine environments, such as seawater systems and are commonly found in the chemical processing, oil and gas, and electrical industries. They are used in heat exchangers, pumps, valves and in pressure vessels where corrosion resistance, pitting and stress cracking are necessary to occur . Monel K500 Flanges are also used in aerospace applications due to their resistance to extreme temperatures and harsh chemical environments providing reliable, long-lasting durability in complex systems.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel K500 | 2.4375 | N05500 | – | – | – | – | – |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
Yes, we offer custom sizes for Monel K500 Flanges to meet specific project needs. Our team at Steve Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@steveflanges.com.
You’ll find Monel K500 Flanges widely used in sectors like marine engineering, oil and gas, chemical processing, power generation, and offshore platforms. They’re ideal for pumps, valves, heat exchangers, and piping systems that function under high pressure and in corrosive settings. Their strength and corrosion resistance make them especially suitable for seawater systems, shafts, and fasteners. These flanges provide secure, leak-proof, and durable connections, ensuring long-term performance and reliability. Monel K500 Flanges are the go-to choice for critical operations that need materials combining strength, resilience, and resistance to aggressive media.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
