Steve Flanges, a top-notch manufacturer and supplier located in Canberra, Australia, has built a solid reputation for providing high-quality Monel 400 Flanges that adhere to international standards for strength, corrosion resistance, and overall performance. These flanges are skillfully made using cutting-edge manufacturing techniques and premium Monel 400 alloy, guaranteeing exceptional durability and reliability even in the toughest environments. With a strong emphasis on precision engineering and rigorous quality control, Steve Flanges produces flanges that operate efficiently under extreme conditions. Industries that require high resistance to seawater, acids, and alkalis trust their Monel 400 Flanges, which offer long-lasting service and secure, leak-proof connections.
Monel 400 Flanges are primarily made up of nickel (around 67%) and copper (about 30%), along with trace amounts of iron, manganese, silicon, and carbon. This unique composition provides them with remarkable corrosion resistance in seawater, acidic, and alkaline settings, as well as impressive mechanical strength. They boast high tensile and yield strength, good ductility, and toughness, even in sub-zero temperatures. Monel 400 retains its mechanical integrity in both oxidizing and reducing environments, making it suitable for a variety of pressure and temperature applications.
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 400 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |

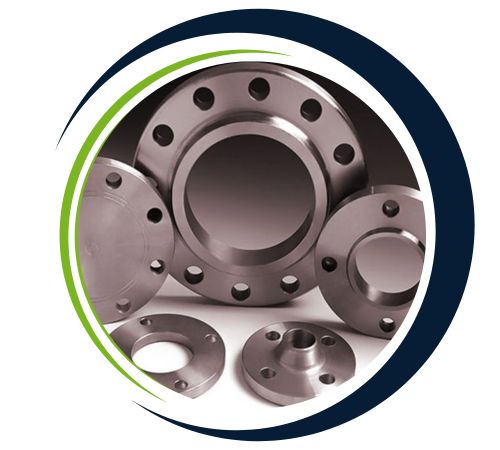

| Production Technique | Forged, Heat treated and machined |

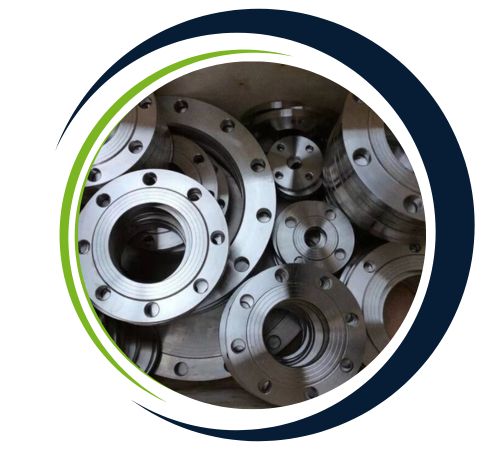

| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |

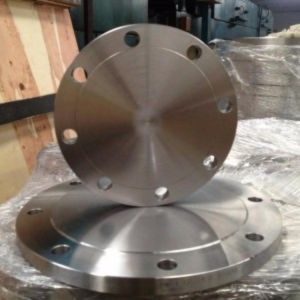

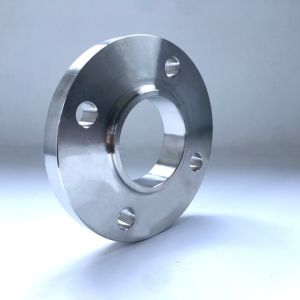

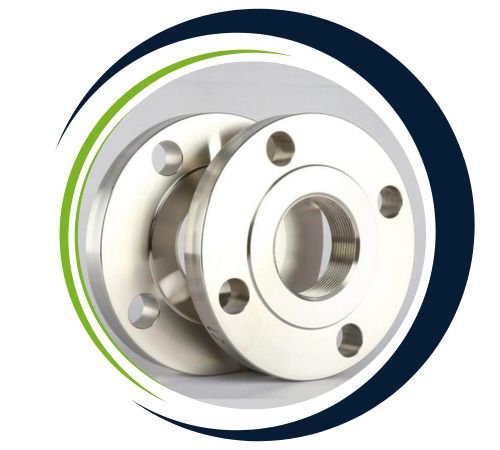

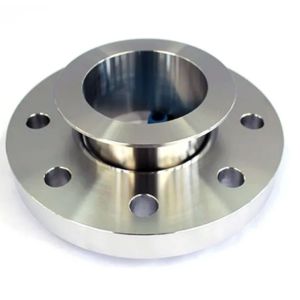

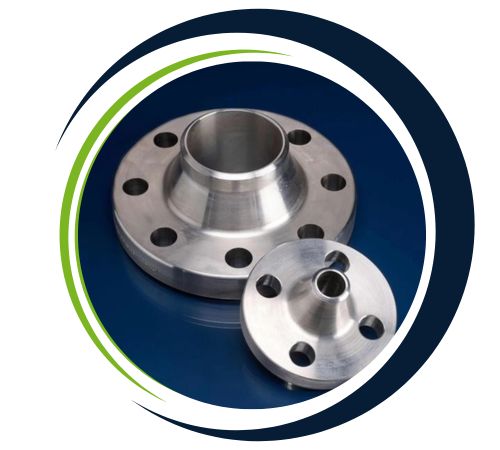

Steve Flanges, a leading supplier in Canberra, Australia, offers an extensive selection of Monel 400 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
Monel 400 flanges are widely used in applications requiring high corrosion resistance and strength. In marine applications they work best in salt water, making them ideal for pipeline systems valves and pumps that are exposed to seawater. In chemical applications Monel 400 flanges are resistant to volatile chemicals, acids and alkalis making them suitable for tanks reactors and heat exchangers In the oil and gas industry these flanges are valuable for handling high-pressure acid gas function, and provide safe- in harsh environmental conditions. They develop long-lasting coordination and strength and their reliability and resilience are essential in their complex applications.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Yes, we offer custom sizes for Monel 400 Flanges to meet specific project needs. Our team at Steve Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@steveflanges.com.
These flanges find extensive use in sectors like marine engineering, chemical processing, oil and gas, power generation, and desalination. They are perfect for heat exchangers, condensers, pumps, and piping systems that handle corrosive fluids. Their outstanding resistance to saltwater and hydrofluoric acid makes them especially well-suited for offshore and coastal projects. Monel 400 Flanges ensure reliable sealing and mechanical stability in aggressive environments, promoting safety and efficiency. They are the go-to choice for critical operations that demand superior corrosion resistance and high-performance materials.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
