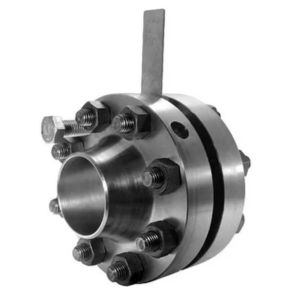

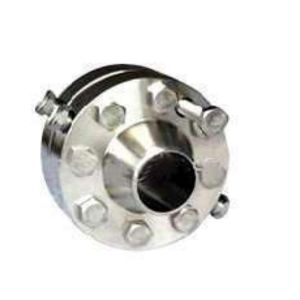

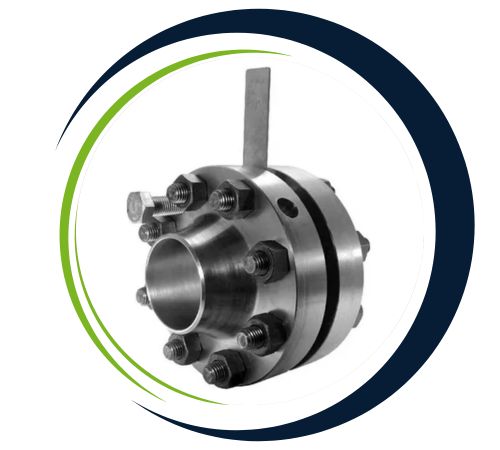

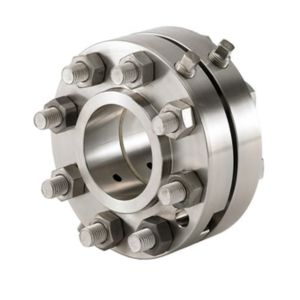

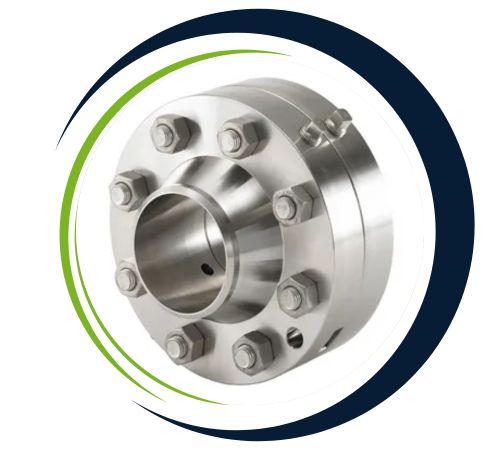

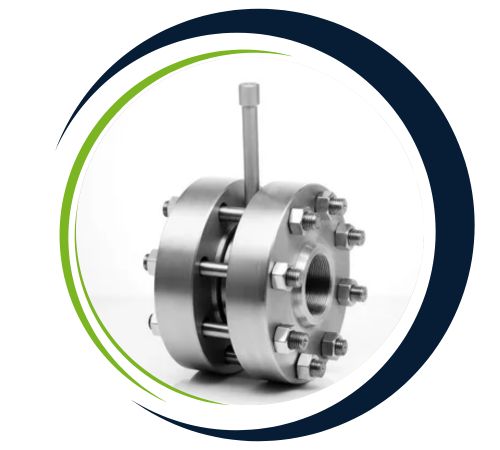

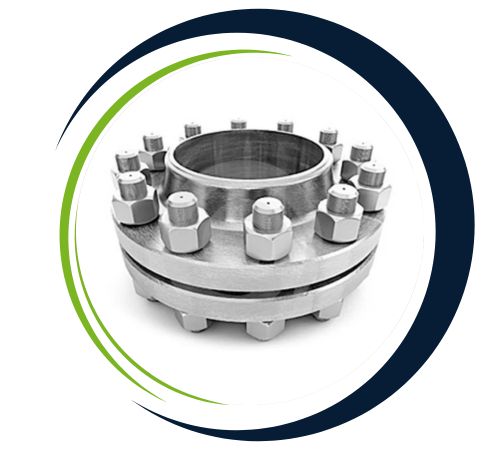

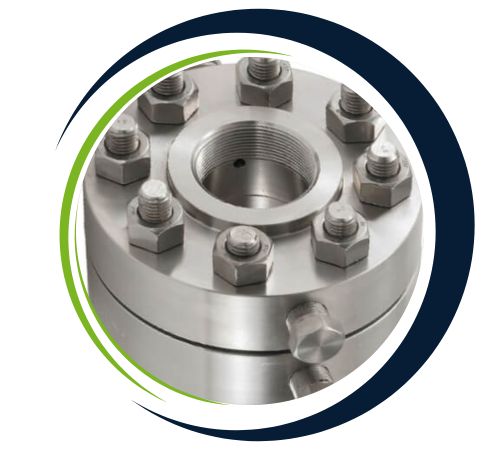

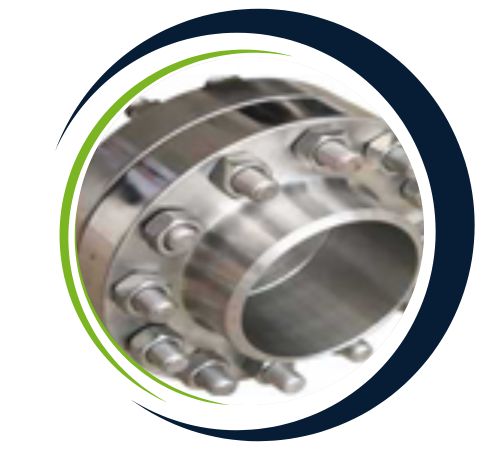

Steve Flanges, located in Canberra, Australia, has built a solid reputation as a manufacturer and supplier of high-performance Inconel Orifice Flanges. These flanges are crafted for precision, durability, and outstanding corrosion resistance, making them perfect for extreme environments. With cutting-edge manufacturing facilities and a rigorous quality assurance process, the company ensures that their flanges meet international standards for strength and reliability. Steve Flanges caters to various industries, including oil and gas, petrochemical, chemical processing, and power generation. Their Inconel Orifice Flanges are particularly prized for their ability to endure high pressure, temperature, and corrosive conditions, all while providing accurate flow measurement and enhancing system efficiency.
The composition of Inconel Orifice Flanges primarily includes nickel, chromium, and iron, with added elements like molybdenum, niobium, and titanium to boost their resistance to corrosion and oxidation. These flanges showcase remarkable tensile and yield strength, along with high creep and rupture resistance, ensuring excellent stability even under fluctuating thermal and mechanical stresses. Their superior mechanical properties make them a go-to choice for high-temperature, high-pressure, and corrosive applications, where precision and durability are non-negotiable.
Steve Flanges, a premier supplier in Canberra, Australia, specializes in high-quality Inconel Orifice Flanges, valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
| Specifications | ASTM B564 / ASME SB564 |
|---|---|
| Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Face Type | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe | – |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb | – |
| Inconel 718 | 2.4668 | N07718 | – | – | – | – | – | – |
Inconel Orifice Flanges find extensive use across industries such as oil and gas, petrochemical, power generation, and chemical processing. They are specifically designed to measure the flow rate of fluids or gases by placing an orifice plate between two flanges. This design not only provides secure, leak-proof connections but also facilitates accurate monitoring and control of fluid flow in pipelines. Common applications include pressure vessels, heat exchangers, and refinery systems. Thanks to their excellent resistance to corrosion, oxidation, and thermal fatigue, these flanges promise long-lasting and reliable performance in even the most demanding industrial settings.
Yes, we offer custom sizes for Inconel Orifice Flanges to meet specific project needs. Our team at Steve Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@steveflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
