Steve Flanges is a well-respected manufacturer and supplier located in Canberra, Australia, specializing in high-performance **Duplex Steel Flanges S32205** that are built for strength, durability, and resistance to corrosion. These flanges are made from top-quality materials and are precision-engineered to comply with international standards, guaranteeing reliable performance even in tough conditions. Renowned for their impressive mechanical strength and ability to resist stress corrosion cracking, they are perfect for critical applications that involve high pressure and temperature. Steve Flanges offers Duplex Steel S32205 Flanges that promise exceptional quality and a long service life, catering to industries such as oil and gas, petrochemical, marine, and power generation.
**Duplex Steel Flanges S32205** primarily consist of chromium (21–23%), nickel (4.5–6.5%), molybdenum (2.5–3.5%), along with manganese, nitrogen, and iron. This unique duplex microstructure, which combines ferrite and austenite, delivers remarkable mechanical strength and corrosion resistance. The material boasts a tensile strength of about 620 MPa, a yield strength of 450 MPa, and an elongation of roughly 25%. It shows excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, while also maintaining outstanding toughness, weldability, and stability, even in environments rich in chlorides or under high-stress conditions.
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |

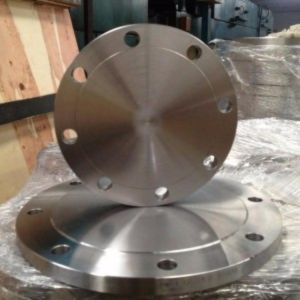

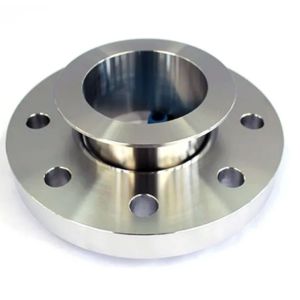

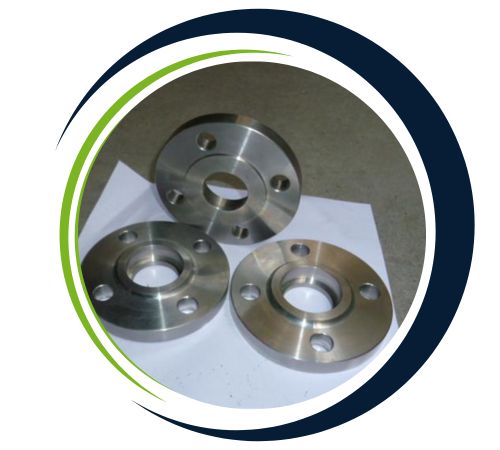

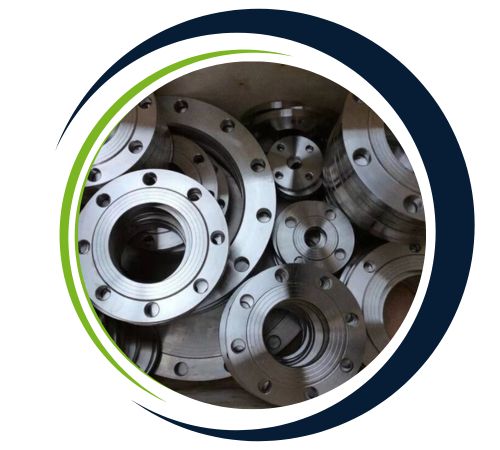

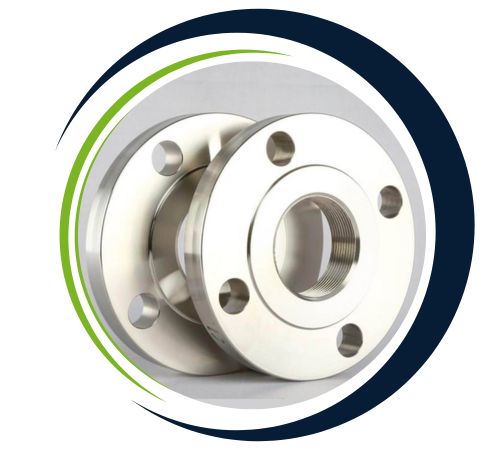

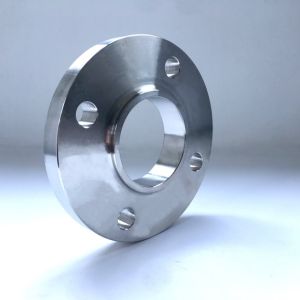

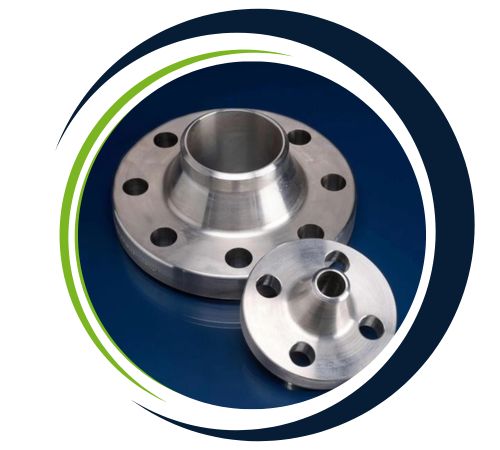

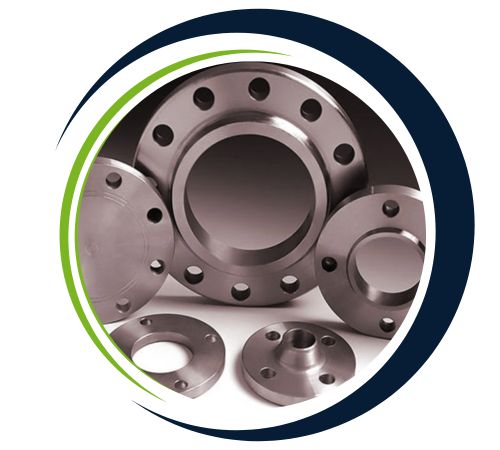

Steve Flanges, a leading supplier in Canberra, Australia, offers an extensive selection of Duplex Steel Flanges S32205, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
**Duplex Steel Flanges S32205** are extensively utilized in industries that demand robust and corrosion-resistant flange connections. In the oil and gas sector, they find applications in offshore drilling platforms, refineries, and subsea pipelines. Chemical and petrochemical facilities use them for process piping and pressure vessels. The power generation sector relies on them for boiler and turbine systems, while marine and desalination plants benefit from their ability to withstand seawater corrosion. Furthermore, these flanges are also suitable for pulp and paper, water treatment, and heat exchanger systems, where reliability, strength, and long-term performance are crucial.
| STANDARD | UNS | WERKSTOFF NR. |
| Duplex Steel S32205 | s32205 | 1.4462 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| Duplex S32205 | 0.030 max | 2 max | 1 max | 0.030 max | 0.020 max | 21 – 23 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | Bal |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 116000 , MPa – 800 | Psi – 80000 , MPa – 550 | 15 % |
Yes, we offer custom sizes for Duplex Steel Flanges S32205 to meet specific project needs. Our team at Steve Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@steveflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
