Steve Flanges, a prominent manufacturer and supplier located in Canberra, Australia, has earned a reputation for providing top-notch Duplex Steel S31803 Flanges that cater to the rigorous demands of today’s industries. These flanges are made from high-quality duplex stainless steel S31803, utilizing cutting-edge manufacturing techniques to guarantee outstanding strength, corrosion resistance, and durability. Steve Flanges offers Duplex Steel S31803 Flanges in a variety of sizes, types, and pressure ratings, all adhering to international standards. The company’s commitment to innovation, precision, and customer satisfaction has made it a trusted name in both the Australian and global flange markets.
Duplex Steel S31803 Flanges are primarily made up of chromium (around 22%), nickel (5–6%), molybdenum (3%), and nitrogen, providing an excellent balance of mechanical strength and corrosion resistance. They boast a tensile strength ranging from 620 to 880 MPa and a yield strength of about 450–620 MPa. The unique dual-phase austenitic-ferritic structure enhances their toughness, resistance to stress-corrosion cracking, and fatigue strength. These flanges excel in chloride-rich and marine environments, maintaining their stability even under high pressure and temperature conditions.
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, S31803 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |

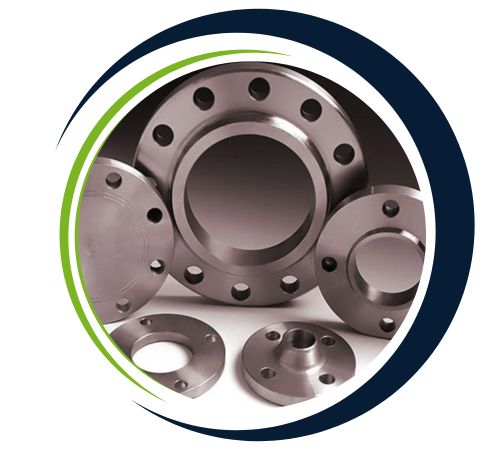

| Production Technique | Forged, Heat treated and machined |

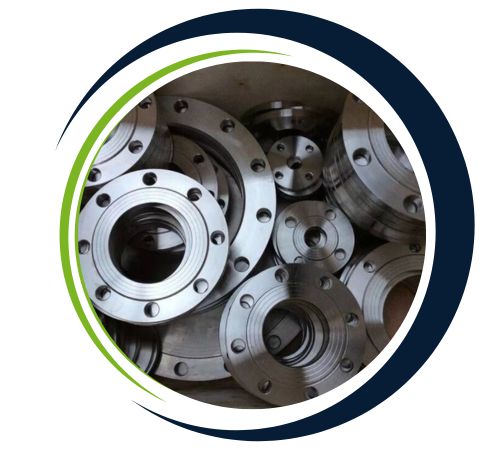

| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |

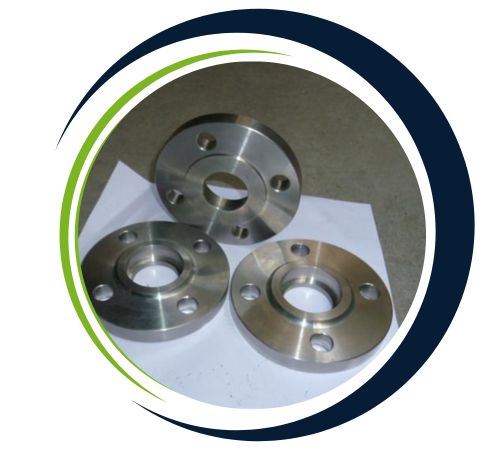

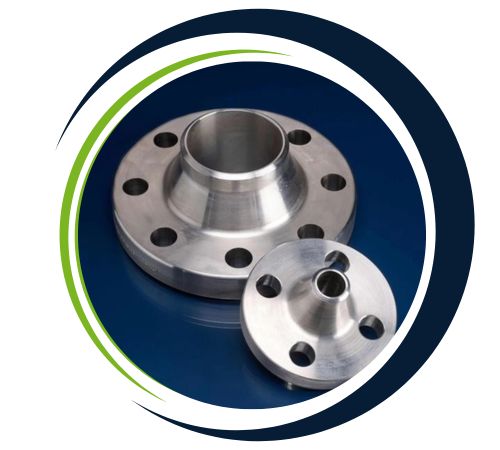

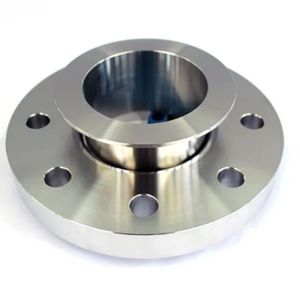

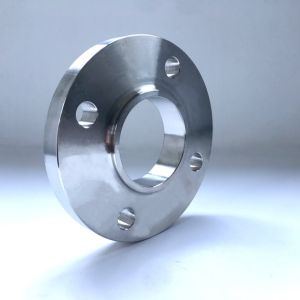

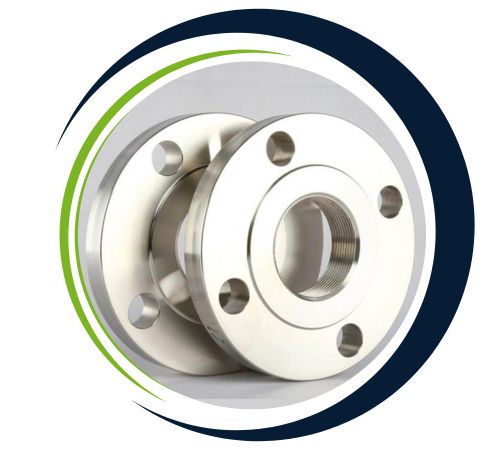

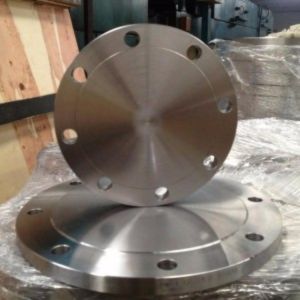

Steve Flanges, a leading supplier in Canberra, Australia, offers an extensive selection of Duplex Steel S31803 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
You’ll find Duplex Steel S31803 Flanges widely used across various industries, including oil and gas, chemical processing, marine engineering, power generation, and desalination. They’re perfect for connecting pipes, pumps, and valves in systems that handle corrosive or high-pressure fluids. Their exceptional corrosion resistance makes them ideal for offshore platforms, heat exchangers, and pressure vessels. These flanges deliver long-lasting performance in environments where standard stainless steels might struggle. Thanks to their strength, cost-effectiveness, and reliability, Duplex Steel S31803 Flanges are the go-to choice for critical industrial and marine applications.
| STANDARD | UNS | WERKSTOFF NR. |
| Duplex Steel S31803 | S31803 | 1.4462 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| Duplex S31803 | 0.030 max | 2 max | 1 max | 0.030 max | 0.020 max | 22 – 23 | 3 – 3.50 | 4.50 – 6.50 | 0.14 – 0.20 | Bal |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 116000 , MPa – 800 | Psi – 80000 , MPa – 550 | 15 % |
Yes, we offer custom sizes for Duplex Steel S31803 Flanges to meet specific project needs. Our team at Steve Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@steveflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
