Steve Flanges, based in Canberra, Australia, stands out as a top-notch manufacturer and supplier of high-quality Low Temperature Carbon Steel LF6 Flanges. These flanges are specifically crafted to excel in cryogenic and low-temperature settings. The company has built a solid reputation for its precision engineering, cutting-edge manufacturing techniques, and unwavering commitment to international standards. Steve Flanges provides robust, high-strength flange solutions for various industries, including oil and gas, petrochemical, LNG processing, and power generation. Their LF6 Flanges are highly regarded for their toughness, reliability, and ability to maintain outstanding mechanical properties even in extreme low-temperature conditions.
The Low Temperature Carbon Steel LF6 Flanges are primarily made up of carbon, manganese, silicon, phosphorus, and sulfur, with a carefully regulated nickel content that boosts impact toughness in chilly environments. These flanges showcase impressive tensile and yield strength, excellent ductility, and remarkable notch toughness. They maintain their mechanical integrity even in sub-zero temperatures, ensuring safety and performance in cryogenic applications. Their sturdy composition and resistance to brittle fracture make them perfect for challenging low-temperature service environments.
| Material Specification Of : | ASTM A350 LF6 Flanges |
|---|---|
| South African Standard Flanges | SANSflanges And SABS flanges |
| Surface Finish | smooth, concentric serrated, stock |
| Gaskets Types | Full Face Gasket Flat Ring Gasket Metallic Ring Gakset |
| Advantages Of Pipe Flange | Used to Connect Pipe System Easy Repair Pipe System Assembled Without Welding |
| Standard Cover : | pressure ratings & temperature ratings, materials, marking, dimensions, weight, tolerances, testing |
| Contact Faces | RTJ (Ring Type Joint), FF (Flat Face), RF (Raised Face), T/G (Tongue And Groove ), M/F (Male And Female) |
| Size Chart | Normal Pipe Size 1/2 to NPS 24″ |
| Thickness | Normal Pipe Size ≤ 18 |
| Bore Diameter | Normal Pipe ≤ 10 |
| Flanges Standards | EN 1092-1, JIS, ASME B16.5, ASME B16.47 type A, UNI, DIN |
| Pressure Rating | Class 150 To Class 2500 |
| High Temperature | Above 200°C (400°F) For Class 150 Or Above 400°C (750°F) |
| Low Temperature | Above -29 Degree C (−20°F) |
| Common Types Of Flanges: | Slip On (SORF), Weld Neck (WNRF), Blind (BLRF), Lap Joint (Loose), Threaded (NPT), Socket-Weld (SWRF) |
| Special Types Of Flanges : | Nipoflange, Elboflange, Latroflange, Swivel Flange, Expanding Flange, Reducing Flange, Weldoflange |
| Marking Standard | Name of Manufacturer Schedule Type of Flange Facing Nominal Pipe Size Pressure Class ASME B16 Designation |
| Bolt Type | high strength bolts medium strength bolts low strength bolts |
| European Standard Flanges | JIS B2220 Flanges (5k to 30k) and KS1503 flanges |
| Russian-Standard Flanges | GOST 12820 / 12821-80, DIN, UNI, EN 1092-1 |
| Element | Composition |
|---|---|
| Carbon, maximum | 0.20 maximum |
| Manganese | 0.90 maximum |
| Phosphorus, maximum | 0.035 maximum |
| Sulfur, maximum | 0.040 maximum |
| Silicon [Note A] | 0.20–0.35 |
| Nickel | 3.3–3.7 |
| Chromium | 0.30 maximum [Note C] |
| Molybdenum | 0.12 maximum [Note C] |
| Copper | 0.40 maximum |
| Columbium | 0.02 maximum |
| Vanadium | 0.03 maximum |
| Grade/Class | Tensile Strength | Yield Strength, minimum | Elongation, minimum | Hardness, maximum | ||
| ksi | MPa | ksi | MPa | % | HBW | |
| LTCS LF6 CL1 | 66–91 | 455–630 | 52 | 360 | 22 | 197 |
| LTCS LF6 CL2 | 75–100 | 515–690 | 60 | 415 | 20 | 197 |
| LTCS LF6 CL3 | 75–100 | 515–690 | 60 | 415 | 20 | 197 |

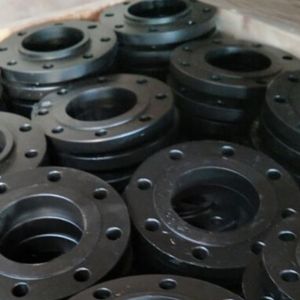

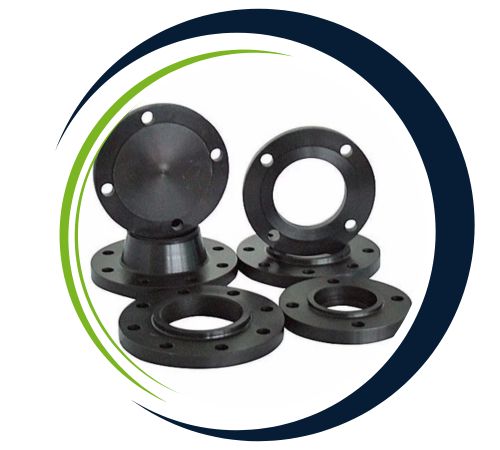

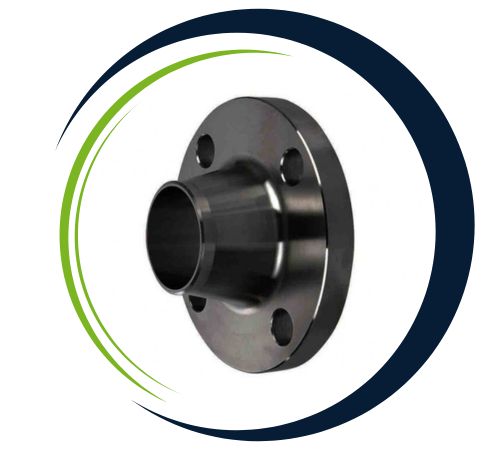

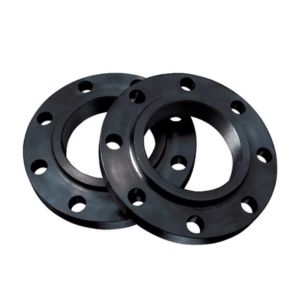

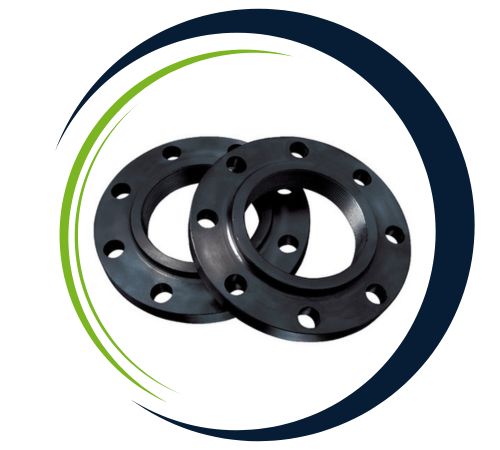

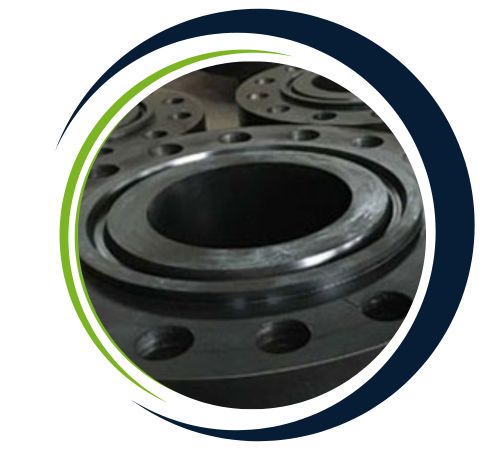

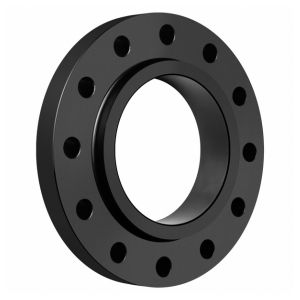

Steve Flanges, a leading supplier in Canberra, Australia, offers an extensive selection of Low Temperature Carbon Steel LF6 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
You’ll find Low Temperature Carbon Steel LF6 Flanges widely utilized in sectors like oil and gas, LNG plants, refrigeration, and chemical processing. They’re perfect for connecting pipes, valves, and pumps in low-temperature piping systems and cryogenic storage tanks. Common uses include heat exchangers, process lines, and pressure vessels that handle liquefied gases and other cold fluids. These flanges offer leak-proof, durable, and secure connections, guaranteeing long-term reliability and safety in demanding low-temperature operating conditions.
Yes, we offer custom sizes for Low Temperature Carbon Steel LF6 Flanges to meet specific project needs. Our team at Steve Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@steveflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
