Steve Flanges stands out as a top-notch manufacturer and supplier of Incoloy Socket Weld Flanges right in Canberra, Australia. They’ve built a solid reputation for their precision engineering, exceptional quality, and a service approach that puts customers first. With years of experience under their belt in the flange industry, Steve Flanges delivers products that are not only durable but also resistant to corrosion, all while adhering to international standards. They specialize in Incoloy flanges that are perfect for high-temperature and high-pressure settings. Thanks to their state-of-the-art manufacturing facilities and a talented team of professionals, Steve Flanges guarantees reliable performance, precise dimensions, and timely deliveries, making them a go-to name in Australia’s industrial and engineering sectors.
The Incoloy Socket Weld Flanges from Steve Flanges in Canberra are primarily made from nickel, iron, and chromium, with added molybdenum, titanium, and copper to boost their strength and resistance to corrosion. These materials offer excellent oxidation resistance and mechanical stability, even in extreme conditions. The flanges boast high tensile strength, impressive creep resistance, and remarkable toughness, even when the temperatures rise. Their mechanical properties make them a perfect fit for demanding industrial applications where durability, weldability, and structural integrity are crucial.
| Specification | Galvanized Flanges |
|---|---|
| Order Quantity | 30 Piece |
| Size | >30 inch |
| Forging Methods | Casting/ Forging/ Rolling/ Cutting |
| Production Technique | Forged/ Heat treated and machined |
| Brand | Vishal Steel |
| Flange Type | Slip On/ Blind/ Weld Neck/ Threaded |
| Color | galvanised |
| Shape | round |
| Flange Equipment | Pushing Machine/ electric bevelling machine/ Press machine/ Bending machine/ Sand-blasting machine etc |
| Finish | coated |
| Rated Pressure | as per requirement |
| Surface Finish | as per requirement |
| Diameter | depends on size |
| Supporting Material | Gasket/ Ring Joint/ Flange Bolts |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Application | Bitumen upgraders Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids. |
| Composition | Content |
|---|---|
| Sulfur, S | ≤ 0.050 % |
| Iron, Fe | 98.81 – 99.26 % (as remainder) |
| Carbon, C | 0.14 – 0.20 % |
| Manganese, Mn | 0.60 – 0.90 % |
| Phosphorous, P | ≤ 0.040 % |

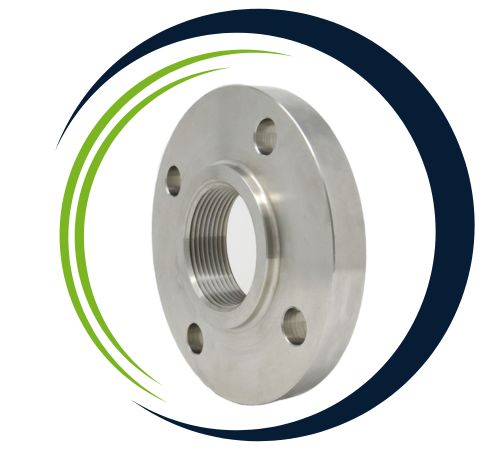

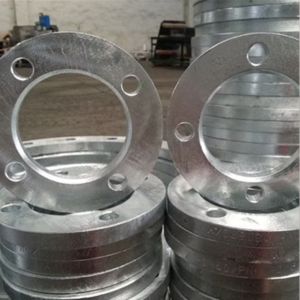

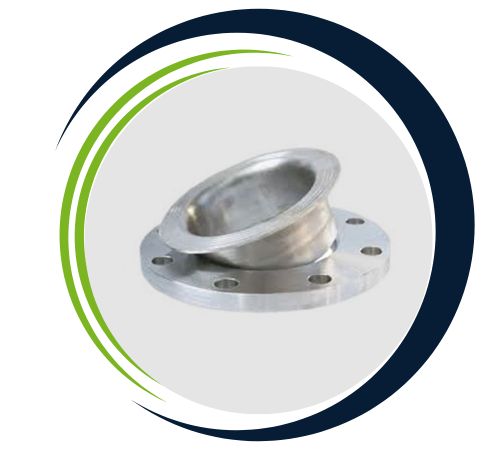

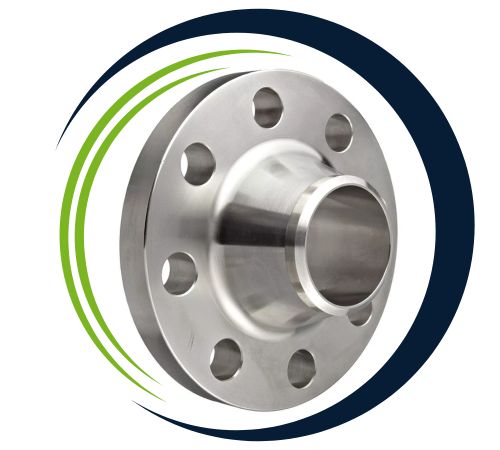

Steve Flanges, a leading supplier in Canberra, Australia, offers an extensive selection of Hot dipped Galvanized Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Hot-dip galvanized (HDG) flanges are generally used in applications that demand high corrosion resistance and durability. They are typically utilized in plumbing fixtures, water treatment and wastewater plants, and gas and oil pipes to provide leak-free connections and long-term operation In building they assist HVAC equipment and building system during extreme weather conditions HDG flanges find application in pharmaceutical uses, marine uses and agricultural machinery, where moisture and corrosive substances exposure is halted, and provides an assured and convenient solution for essential systems.
| Normal Size Of Steel Pipe in Inch | NPS (Normal Pipe Size) Size in Millimeter | O.D. | Wall Thickness | Hub Outer Diameter | Weld Neck Outer Diameter | ASME B16.5 WNRF Length | WNRF Bore Daimeter | Raised Face Diameter | Height Of Raised Face | PCD | Face Of WNRF |
| (A) | (B) | (C) | (D) | (E) | (F) | (G) | (H) | (I) | (J) | ||
| 1/2 | 15 | 90 | 9.6 | 30 | 21.3 | 46 | – | 34.9 | 2 | 60.3 | 1.6 |
| 3/4 | 20 | 100 | 11.2 | 38 | 26.7 | 51 | 42.9 | 2 | 69.9 | 1.6 | |
| 1 | 25 | 110 | 12.7 | 49 | 33.4 | 54 | 50.8 | 2 | 79.4 | 1.6 | |
| 1 1/4 | 32 | 115 | 14.3 | 59 | 42.2 | 56 | 63.5 | 2 | 88.9 | 1.6 | |
| 1 1/2 | 40 | 125 | 15.9 | 65 | 48.3 | 60 | 73 | 2 | 98.4 | 1.6 | |
| 2 | 50 | 150 | 17.5 | 78 | 60.3 | 62 | 92.1 | 2 | 120.7 | 1.6 | |
| 2 1/2 | 65 | 180 | 20.7 | 90 | 73 | 68 | 104.8 | 2 | 139.7 | 1.6 | |
| 3 | 80 | 190 | 22.3 | 108 | 88.9 | 68 | 127 | 2 | 152.4 | 1.6 | |
| 3 1/2 | 90 | 215 | 22.3 | 122 | 101.6 | 70 | 139.7 | 2 | 177.8 | 1.6 | |
| 4 | 100 | 230 | 22.3 | 135 | 114.3 | 75 | 157.2 | 2 | 190.5 | 1.6 | |
| 5 | 125 | 255 | 22.3 | 164 | 141.3 | 87 | 185.7 | 2 | 215.9 | 1.6 | |
| 6 | 150 | 280 | 23.9 | 192 | 168.3 | 87 | 215.9 | 2 | 241.3 | 1.6 | |
| 8 | 200 | 345 | 27 | 246 | 219.1 | 100 | 269.9 | 2 | 298.5 | 1.6 | |
| 10 | 250 | 405 | 28.6 | 305 | 273 | 100 | 323.8 | 2 | 362 | 1.6 | |
| 12 | 300 | 485 | 30.2 | 365 | 323.8 | 113 | 381 | 2 | 431.8 | 1.6 | |
| 14 | 350 | 535 | 33.4 | 400 | 355.6 | 125 | 412.8 | 2 | 476.3 | 1.6 | |
| 16 | 400 | 595 | 35 | 457 | 406.4 | 125 | 469.9 | 2 | 539.8 | 1.6 | |
| 18 | 450 | 635 | 38.1 | 505 | 457.2 | 138 | 533.4 | 2 | 577.9 | 1.6 | |
| 20 | 500 | 700 | 41.3 | 559 | 508 | 143 | 584.2 | 2 | 635 | 1.6 | |
| 24 | 600 | 815 | 46.1 | 663 | 610 | 151 | 692.2 | 2 | 749.3 | 1.6 |
| Size | Specification |
|---|---|
| 3/4″ Pipe | 3-1/4″ OD, 5/8″ Hub Length, Black Floor Pipe Flange |
| 1/2″ Pipe | 3″ OD, 5/8″ Hub Length, Black Floor Pipe Flange |
| 2″ Pipe | 5-1/2″ OD, 1″ Hub Length, Black Floor Pipe Flange |
| 1-1/2″ Pipe | 4-1/2″ OD, 7/8″ Hub Length, Black Floor Pipe Flange |
| 1″ Pipe | 4″ OD, 11/16″ Hub Length, Black Floor Pipe Flange |
| 1/2″ Pipe | 3-1/2″ OD, 5/8″ Hub Length, Galvanized Floor Pipe Flange |
| 1-1/4″ Pipe | 4″ OD, 13/16″ Hub Length, Black Floor Pipe Flange |
| 3/4″ Pipe | 3-1/2″ OD, 5/8″ Hub Length, Galvanized Floor Pipe Flange |
| 1/4″ Pipe | 2-3/16″ OD, 5/8″ Hub Length, Black Floor Pipe Flange |
| 3/8″ Pipe | 3″ OD, 5/8″ Hub Length, Black Floor Pipe Flange |
| 2″ Pipe | 5-1/2″ OD, 1″ Hub Length, Galvanized Floor Pipe Flange |
| 1″ Pipe | 4″ OD, 11/16″ Hub Length, Galvanized Floor Pipe Flange |
| Normal Pipe Size | Dimensions | Weight (Kilogram) | ||||
|---|---|---|---|---|---|---|
| Normal Pipe Size (Inch) | DN (mm) | Flanges In Millimeter | Flanges In Wall Thickness | Slip On | Weld Neck | Blind |
| 1/2 | 15 | 88.9 | 11.2 | 0.4 | 0.5 | 0.4 |
| 3/4 | 20 | 98.6 | 12.7 | 0.6 | 0.7 | 0.6 |
| 1 | 25 | 108 | 14.2 | 0.8 | 1 | 0.9 |
| 1 1/4 | 32 | 117.3 | 15.7 | 1 | 1.3 | 1.2 |
| 1 1/2 | 40 | 127 | 17.5 | 1.3 | 1.7 | 1.5 |
| 2 | 50 | 152.4 | 19.1 | 2.1 | 2.6 | 2.4 |
| 2 1/2 | 65 | 177.8 | 22.4 | 3.3 | 4.1 | 3.9 |
| 3 | 80 | 190.5 | 23.9 | 3.9 | 4.9 | 4.9 |
| 3 1/2 | 90 | 215.9 | 23.9 | 4.8 | 6.1 | 6.2 |
| 4 | 100 | 228.6 | 23.9 | 5.3 | 6.8 | 7.0 |
| 5 | 125 | 254 | 23.9 | 6.1 | 8.6 | 8.6 |
| 6 | 150 | 279.4 | 25.4 | 7.5 | 10.6 | 11.3 |
| 8 | 200 | 342.9 | 28.4 | 12.1 | 17.6 | 19.6 |
| 10 | 250 | 406.4 | 30.2 | 16.5 | 24 | 28.6 |
| 12 | 300 | 482.6 | 31.8 | 26.2 | 36.5 | 43.2 |
| 14 | 350 | 533.4 | 35.1 | 34.6 | 48.4 | 58.1 |
| 16 | 400 | 596.9 | 36.6 | 44.8 | 60.6 | 76.1 |
| 18 | 450 | 635 | 39.6 | 48.9 | 68.3 | 93.7 |
| 20 | 500 | 698.5 | 42.9 | 61.9 | 84.5 | 122.0 |
| 24 | 600 | 812.8 | 47.8 | 86.9 | 115 | 185.0 |
Manufactured in Canberra, Australia, Steve Flanges’ Incoloy Socket Weld Flanges are widely utilized in industries that need strong and corrosion-resistant connections. They’re particularly well-suited for chemical processing, power generation, marine engineering, heat exchangers, oil and gas refineries, and nuclear facilities. Their outstanding resistance to oxidation and scaling in high-temperature environments ensures they perform reliably and have a long service life. Incoloy socket weld flanges are especially ideal for pipelines that transport acidic or corrosive fluids. With their precise fit and robust weld joint, they create a leak-free and secure connection for essential industrial operations.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
