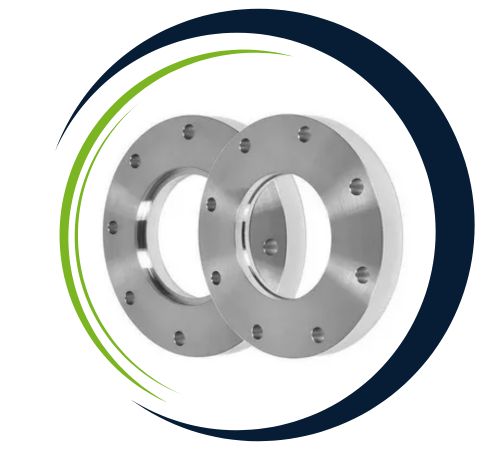

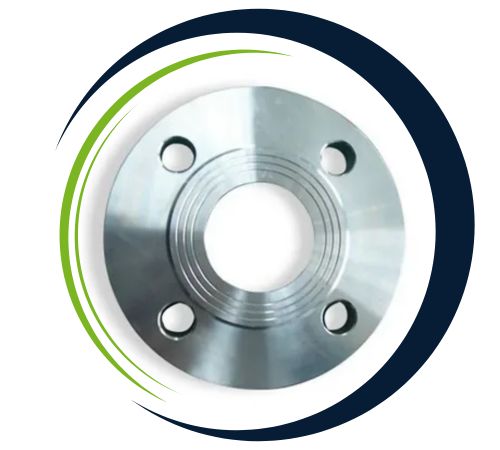

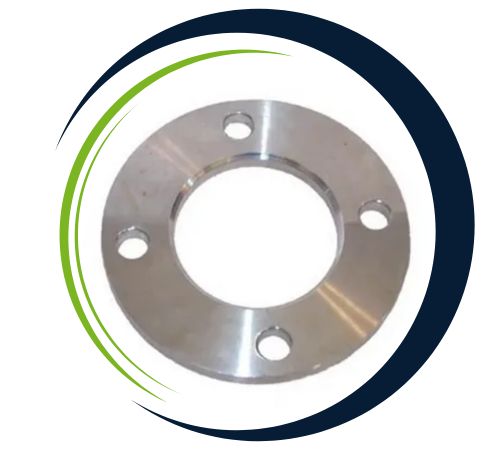

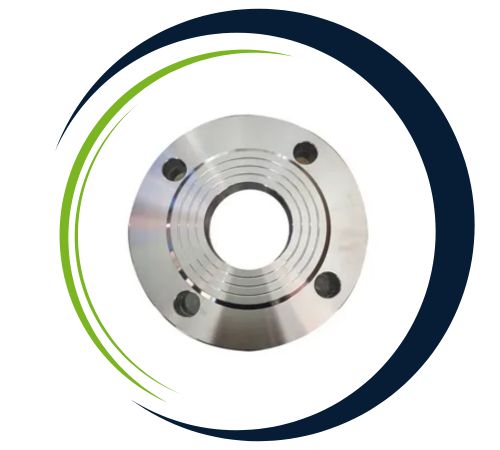

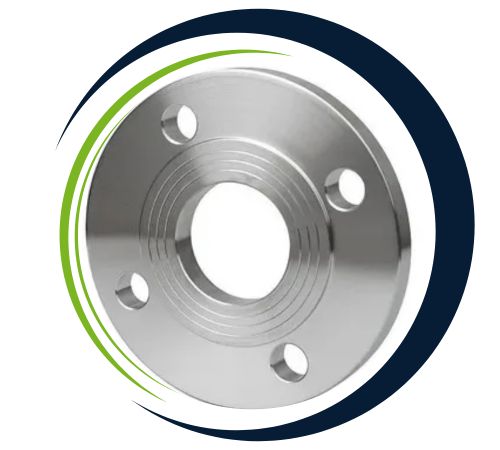

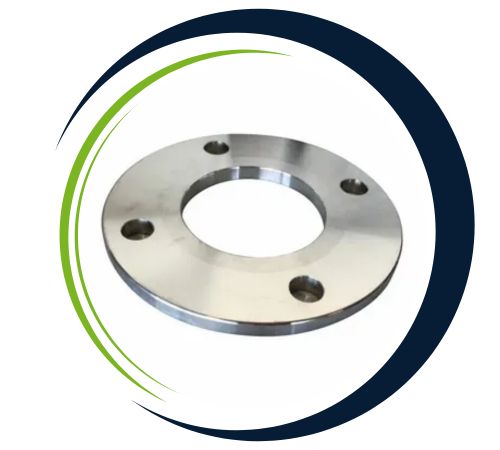

Steve Flanges, a top-notch manufacturer and supplier located in Canberra, Australia, offers high-quality **Hastelloy Plate Flanges** that are celebrated for their remarkable corrosion resistance, strength, and durability. These flanges are crafted to excel in extremely corrosive and high-temperature settings, guaranteeing leak-proof and secure connections. With a commitment to precision and adherence to international quality standards, Steve Flanges’ **Hastelloy Plate Flanges** are perfect for industries like **chemical processing, marine, oil and gas, power generation, and pharmaceuticals**, where reliability, longevity, and exceptional resistance to harsh chemicals are crucial for safe and efficient operations.
The primary materials in **Hastelloy Plate Flanges** include **nickel, molybdenum, and chromium**, along with smaller amounts of tungsten, iron, and cobalt to enhance corrosion resistance and mechanical performance. They boast a **tensile strength of about 760 MPa** and a **yield strength of roughly 350 MPa**, offering impressive resistance to pitting, crevice corrosion, and stress corrosion cracking. This strong chemical composition guarantees excellent durability and stability, even in both oxidizing and reducing environments at high temperatures.
Hastelloy Plate Flanges Specification : ASTM B564 / ASME SB564
Dimension Standard : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
DIN Flanges : DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673.
JIS Flanges : JIS B2220 5K, JIS B2220 10K, JIS B2220 16K, JIS B2220 20K
BS Flanges : BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250, BS 10, BS Table D, BS Table E, BS Table F, BS Table H.
Steve Flanges, a premier supplier in Canberra, Australia, specializes in high-quality Hastelloy Plate Flanges. They are valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
You’ll find **Hastelloy Plate Flanges** commonly used in **chemical reactors, heat exchangers, piping systems, scrubbers, and condensers** because of their ability to withstand strong acids like hydrochloric, sulfuric, and phosphoric acids. They’re also utilized in **marine engineering, pollution control equipment, and pharmaceutical manufacturing**, where resistance to corrosive chemicals and temperature fluctuations is essential. Their outstanding strength and corrosion resistance make them ideal for sealing and connecting components in **high-pressure and high-temperature process systems**.
| STANDARD | UNS | WNR. | JIS | EN |
|---|---|---|---|---|
| Hastelloy C22 | N06022 | 2.4602 | NW 6022 | NiCr21Mo14W |
| Hastelloy C276 | N10276 | 2.4819 | NW 0276 | NiMo16Cr15W |
|
Standard |
Class |
Diameter |
Bolt Circle Diameter |
Number of Bolts |
Bolt Size |
Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
|
AS4087 Flanges |
PN14 Flanges |
95 |
67 |
4 |
M12 |
14 |
|
AS 2129 Flange |
Table C Flanges |
95 |
67 |
4 |
13 |
14 |
|
Table D Flanges |
95 |
67 |
4 |
13 |
14 |
|
|
Table E Flanges |
95 |
67 |
4 |
13 |
14 |
|
|
Table F Flanges |
95 |
67 |
4 |
13 |
14 |
|
|
Table H Flanges |
114 |
83 |
4 |
16 |
17 |
|
|
Table J Flanges |
114 |
83 |
4 |
16 |
17 |
|
|
ANSI B16.5 Flanges |
ANSI 150 Flanges |
89 |
60 |
4 |
13 |
16 |
|
ANSI 300 Flanges |
95 |
67 |
4 |
13 |
16 |
|
|
ANSI 600 Flanges |
95 |
67 |
4 |
13 |
16 |
|
|
ANSI 900 Flanges |
121 |
83 |
4 |
19 |
22 |
|
|
ANSI 1500 Flanges |
121 |
83 |
4 |
19 |
22 |
|
|
ISO 7005 (DIN) Flange |
PN6 Flanges |
80 |
55 |
4 |
M10 |
11 |
|
PN10 Flanges |
95 |
65 |
4 |
M12 |
14 |
|
|
PN16 Flanges |
95 |
65 |
4 |
M12 |
14 |
|
|
PN20 Flanges |
90 |
60.5 |
4 |
M14 |
16 |
|
|
PN25 Flanges |
95 |
65 |
4 |
M12 |
14 |
|
|
PN40 Flanges |
95 |
65 |
4 |
M12 |
14 |
Yes, we offer custom sizes for Hastelloy Plate Flanges to meet specific project needs. Our team at Steve Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@steveflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
