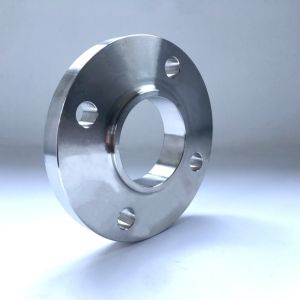

Steve Flanges, a well-respected manufacturer and supplier located in Canberra, Australia, provides top-notch **Hastelloy C22 Flanges** that excel in highly corrosive and chemical environments. Renowned for their outstanding resistance to both oxidizing and reducing agents, these flanges are perfect for critical industrial applications. With a commitment to precise engineering, durability, and reliability, Steve Flanges ensures that their Hastelloy C22 flanges are well-suited for the **chemical processing, marine, pharmaceutical, and pollution control industries**, where a long service life and resistance to pitting, crevice, and stress corrosion cracking are vital under tough operating conditions.
These **Hastelloy C22 Flanges** are primarily made up of **nickel, chromium, molybdenum, and tungsten**, with small amounts of iron and cobalt added to boost corrosion resistance. The alloy boasts a **tensile strength of about 690 MPa** and a **yield strength of around 310 MPa**, maintaining impressive ductility and toughness even in harsh environments. This unique blend offers exceptional protection against both oxidizing and reducing chemicals, along with excellent weldability and structural stability across a broad temperature range.
| C22 Forged Fittings Specifications | ASTM B564/ ASME SB564 |
|---|---|
| Alloy C22 Forged Fittings size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Hastelloy C22 Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Hastelloy C22 Forged Fittings Types | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM B564 C22 Hastelloy Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| Hastelloy C22 Forged Fittings Thread | NPT, BSPT, BSPP |
| C22 Hastelloy Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Nickel Alloy C22 Forged Fittings Origin & Mills | Australia |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |

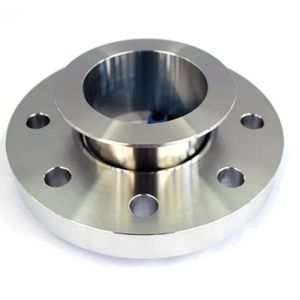

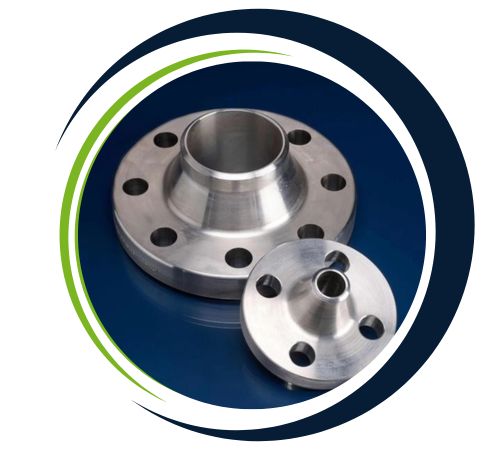

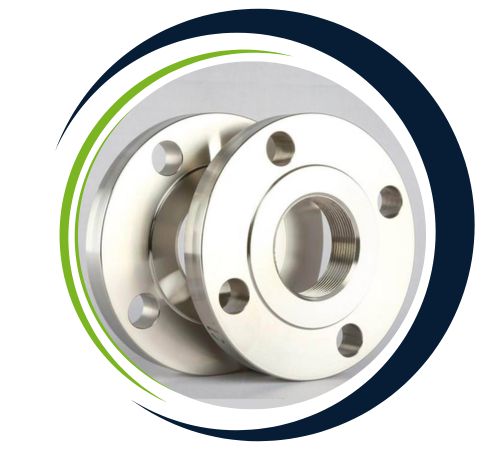

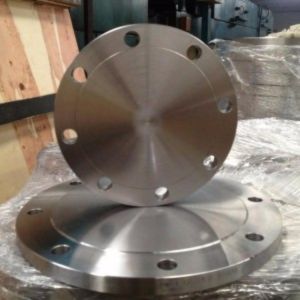

Steve Flanges, a leading supplier in Canberra, Australia, offers an extensive selection of Hastelloy C22 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
You’ll find **Hastelloy C22 Flanges** widely used in **chemical reactors, scrubbers, heat exchangers, evaporators, and marine systems** because they can handle strong acids like hydrochloric, sulfuric, and phosphoric acids. They’re also utilized in **pharmaceutical equipment, wastewater treatment systems, and the pulp and paper industries**, where high corrosion resistance and durability are essential. These flanges guarantee long-term reliability and leak-proof performance, even when exposed to aggressive chemicals and elevated temperatures.
| ASTM B564 / B564M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Hastelloy Forged Fittings |
| BS21 | Threading. |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Hastelloy fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Yes, we offer custom sizes for Hastelloy C22 Flanges to meet specific project needs. Our team at Steve Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@steveflanges.com.
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Hastelloy C22 | N06022 | 2.4602 | – | NiCr21Mo14W | NW 6022 | – | – |
| Grade | C | Mo | Mn | Si | Fe | P | S | Co | Cr | W | V | Ni |
| C22 | 0.010 | 12.5 – 14.5 | 0.50 | 0.08 | 2.00 – 6.00 | 0.02 | 0.02 | 2.5 | 20 – 22.5 | 2.5 – 3.5 | 0.35 | Bal |
| Grade | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 45000 , MPa – 310 | Psi – 1,00,000 , MPa – 690 | 45 % |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
