Steve Flanges, a top-notch manufacturer and supplier located in Canberra, Australia, has built a solid reputation for crafting high-quality **DIN 2641 PN6 Lap Joint Flanges** that deliver outstanding performance, durability, and resistance to corrosion. These flanges are meticulously designed using top-grade materials and cutting-edge manufacturing techniques, ensuring they meet international DIN standards. Steve Flanges offers a diverse selection of DIN 2641 PN6 Lap Joint Flanges in various sizes, materials, and pressure ratings to cater to a wide array of industrial needs. With a strong focus on excellence, reliability, and customer satisfaction, the company has established itself as a trusted name in both the Australian and global flange manufacturing scene.

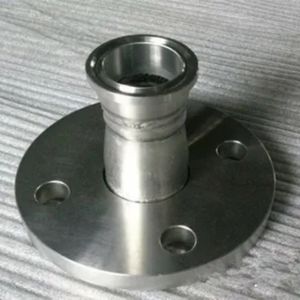

**DIN 2641 PN6 Lap Joint Flanges** are generally crafted from stainless steel, carbon steel, or alloy steel, providing remarkable mechanical properties and corrosion resistance. With a nominal pressure rating of PN6 (6 bar), they boast impressive tensile and yield strength, along with dependable toughness and ductility even in moderate temperature conditions. The lap joint design features a backing flange and a stub end, which makes alignment and rotation during installation a breeze. These flanges also simplify maintenance, inspection, and replacement, ensuring long-lasting, leak-proof performance across various piping systems.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
| Pipe Parameter | Flange Dimension | Screw Dimension | Flange Weight | |||||||
| DN | ISO | DIN | D | d6 | b | k | e | No. of holes | d2 | KG/PCS |
| 10 | – | 14 | 75 | 16 | 10 | 50 | 2 | 4 | 11 | 0.3 |
| 17.2 | – | 75 | 19 | 10 | 50 | 2 | 4 | 11 | 0.29 | |
| 15 | – | 20 | 80 | 22 | 10 | 55 | 2 | 4 | 11 | 0.33 |
| 21.3 | – | 80 | 24 | 10 | 55 | 2 | 4 | 11 | 0.33 | |
| 20 | – | 25 | 90 | 28 | 10 | 65 | 2 | 4 | 11 | 0.42 |
| 26.9 | – | 90 | 30 | 10 | 65 | 2 | 4 | 11 | 0.41 | |
| 25 | – | 30 | 100 | 33 | 12 | 75 | 3 | 4 | 11 | 0.62 |
| 33.7 | – | 100 | 36 | 12 | 75 | 3 | 4 | 11 | 0.61 | |
| 32 | – | 38 | 120 | 42 | 12 | 90 | 3 | 4 | 14 | 0.88 |
| 42.4 | – | 120 | 46 | 12 | 90 | 3 | 4 | 14 | 0.85 | |
| 40 | – | 44.5 | 130 | 50 | 12 | 100 | 3 | 4 | 14 | 1.01 |
| 48.3 | – | 130 | 54 | 12 | 100 | 3 | 4 | 14 | 0.98 | |
| 50 | – | 57 | 140 | 62 | 12 | 110 | 3 | 4 | 14 | 1.11 |
| 60.3 | – | 140 | 65 | 12 | 110 | 3 | 4 | 14 | 1.08 | |
| 65 | 76.1 | – | 160 | 81 | 12 | 130 | 3 | 4 | 14 | 1.35 |
| 80 | 88.9 | – | 190 | 94 | 14 | 150 | 3 | 4 | 18 | 2.24 |
| 100 | – | 108 | 210 | 113 | 14 | 170 | 3 | 4 | 18 | 2.59 |
| 114.3 | – | 210 | 119 | 14 | 170 | 3 | 4 | 18 | 2.47 | |
| 125 | – | 133 | 240 | 138 | 14 | 200 | 3 | 8 | 18 | 3.1 |
| 139.7 | – | 240 | 145 | 14 | 200 | 3 | 8 | 18 | 2.93 | |
| 150 | – | 159 | 265 | 164 | 14 | 225 | 3 | 8 | 18 | 3.52 |
| 168.3 | – | 265 | 173 | 14 | 225 | 3 | 8 | 18 | 3.25 | |
| 200 | 219.1 | – | 320 | 225 | 16 | 280 | 3 | 8 | 18 | 4.85 |
| 250 | – | 267 | 375 | 273 | 20 | 335 | 3 | 12 | 18 | 7.67 |
| 273 | – | 375 | 279 | 20 | 335 | 3 | 12 | 18 | 7.26 | |
| 300 | 323.9 | – | 440 | 329 | 24 | 395 | 4 | 12 | 22 | 11.77 |
| 350 | 355.6 | – | 490 | 362 | 26 | 445 | 4 | 12 | 22 | 16.55 |
| – | 368 | 490 | 374 | 26 | 445 | 4 | 12 | 22 | 15.13 | |
| 400 | 406.4 | – | 540 | 413 | 28 | 495 | 4 | 16 | 22 | 19.56 |
| – | 419 | 540 | 426 | 28 | 495 | 4 | 16 | 22 | 17.67 | |
| 500 | 508 | – | 645 | 517 | 32 | 600 | 4 | 20 | 22 | 27.43 |
| 600 | 610 | – | 755 | 618 | 36 | 705 | 4 | 20 | 26 | 38.75 |
| 700 | 711 | – | 860 | 721 | 40 | 810 | 4 | 24 | 26 | 50.19 |
| 800 | 813 | – | 975 | 824 | 44 | 920 | 4 | 24 | 30 | 67.83 |
| 900 | 914 | – | 1075 | 926 | 48 | 1020 | 4 | 24 | 30 | 81.84 |
| 1000 | 1016 | – | 1175 | 1028 | 52 | 1120 | 4 | 28 | 30 | 95.74 |
| 1200 | 1220 | – | 1405 | 1232 | 60 | 1340 | 5 | 32 | 33 | 155.87 |

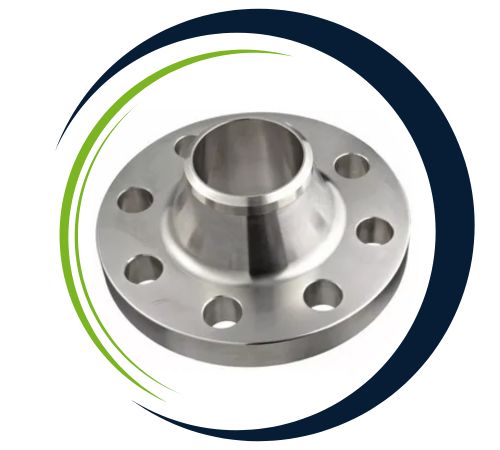

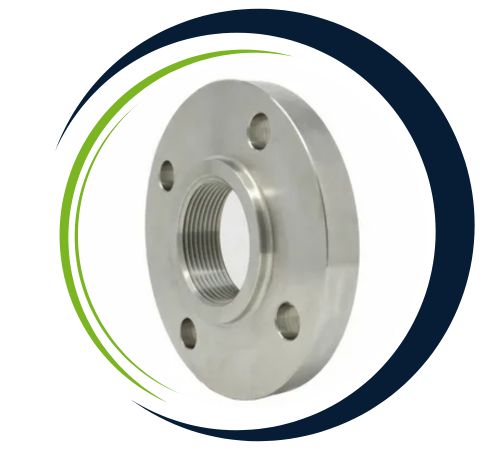

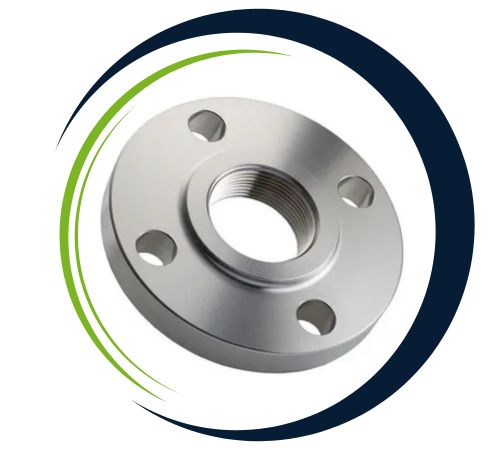

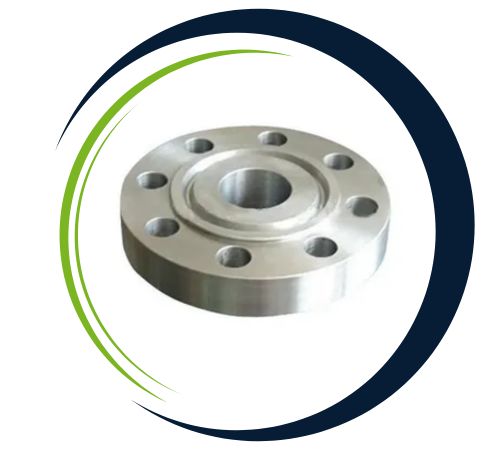

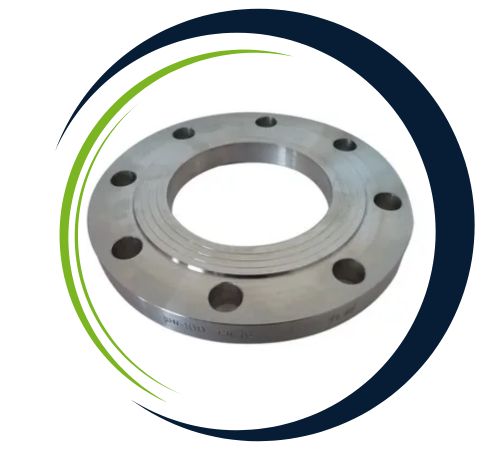

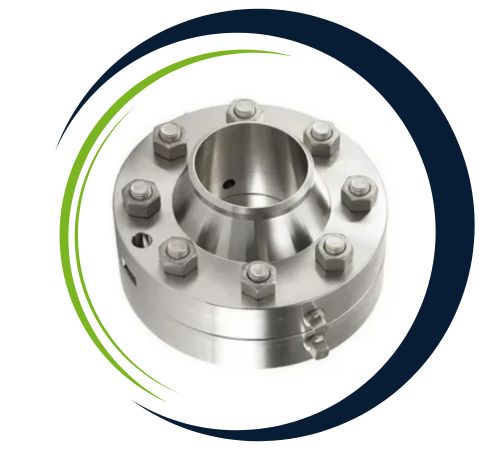

Steve Flanges, a leading supplier in Canberra, Australia, offers an extensive selection of DIN 2641 PN6 Lap Joint Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
**DIN 2641 PN6 Lap Joint Flanges** find their place in numerous industries, including water supply, oil and gas, chemical processing, power generation, and marine engineering. They are particularly suited for systems that require frequent disassembly, such as low-pressure pipelines or connections in corrosive settings. The lap joint design reduces stress during assembly, making it ideal for applications where space is tight or misalignment might be an issue. These flanges are commonly utilized in desalination plants, refineries, and process industries. **DIN 2641 PN6 Lap Joint Flanges** are appreciated for their versatility, ease of installation, and dependable performance in low-pressure piping applications.
Yes, we offer custom sizes for DIN 2641 PN6 Lap Joint Flanges to meet specific project needs. Our team at Steve Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@steveflanges.com.
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
| DIN 2641 PN6 Lap Joint Flange Dimensions | Raised Face DIN 2641 PN6 Lap Joint Flange Manufacturer |
| Alloy Steel DIN 2641 PN6 Lapped Joint Flanges | Copper Nickel DIN 2641 PN6 Lap Joint Flanges at Best Price |
| DIN 2641 PN6 Lap Joint Flange Manufacturer | Flat Face DIN 2641 PN6 Lap Joint Flange Manufacturer |
| 18 inch DIN 2641 PN6 Carbon Steel Lap Joint Flange | DIN 2641 PN6 Lap Joint Flange Dimensions in mm |
| Stainless Steel DIN 2641 PN6 Lap Joint Flange | ASTM B564 Raised Faced DIN 2641 PN6 Lap Joint Flanges |
| DIN 2641 PN6 LJ Flange Exporter | DIN 2641 PN6 Lap Joint Flange Pressure Ratings |
| DIN 2641 PN6 LJ Flange Stockist in Australia | Raised Faced DIN 2641 PN6 Slip-On flanges Dealer in Australia |
| DIN 2641 PN6 LJ Flanges Supplier in Canberra | Alloy Steel DIN 2641 PN6 Lap Joint Flanges Manufacturer in Australia |
| Raised Face DIN 2641 PN6 Lap Joint Plate Flanges | Titanium DIN 2641 PN6 Lapped Joint Flanges |
| DIN 2641 PN6 Lapped Joint FF Flange Supplier | Suppliers of DIN 2641 PN6 Lap Joint Flange |
| DIN 2641 PN6 Lap Joint Pipe Flanges Supplier in Adelaide | Duplex Steel DIN 2641 PN6 Lap Joint Flanges |
| 4 inch Stainless Steel DIN 2641 PN6 Lap Joint Flange | DIN 2641 PN6 Lap Joint RF Flanges Stockholder |
| 30 inch DIN 2641 PN6 Lap Joint Flange Dealer | Raised Face DIN 2641 PN6 Lap Joint Flanges Manufacturer |
| 8 Inch DIN 2641 PN6 Lapped Joint Pipe Flanges | DIN 2641 PN6 Lap Joint Flanges Stockist |
| Carbon Steel Raised Face DIN 2641 PN6 Lap Joint Flange Stockist | Duplex Steel DIN 2641 PN6 LJ Flanges Supplier in Canberra |
| DIN 2641 PN6 LJ Flanges Distributor in Melbourne | Flat Face DIN 2641 PN6 Lap Joint Flanges Exporter |
| DIN 2641 PN6 Lapped Joint Flanges Supplier in Sydney | MS DIN 2641 PN6 Lap Joint Flange |
| ASME SA105N Raised Faced DIN 2641 PN6 Lap Joint Flanges | 18 inch Carbon Steel DIN 2641 PN6 Lap Joint Flange |
| DIN 2641 PN6 Lap Joint Pipe Flanges Wholesaler | DIN 2641 PN6 LJ Flanges Supplier |
| Nickel Alloy DIN 2641 PN6 Lapped Joint Flange | Mild Steel DIN 2641 PN6 Lap Joint Flange |
| Carbon Steel DIN 2641 PN6 Lapped Joint Flange | DIN 2641 PN6 Lap Joint RF Flange Supplier |
| German Standard DIN 2641 PN6 Lap Joint Flanges | DIN 2641 PN6 Lap Joint Flange Supplier in United Kingdom |
| DIN 2641 PN6 Large Diameter Lap Joint Flange | 30 Inch DIN 2641 PN6 Lap Joint Pipe Flange Dimensions |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
