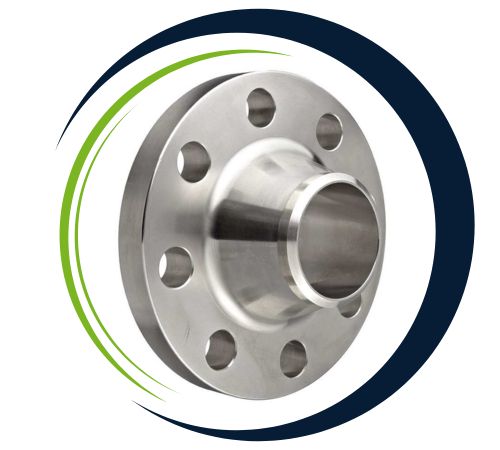

Steve Flanges, a top-notch manufacturer and supplier located in Canberra, Australia, is all about delivering high-quality industrial flanges that meet strict standards. One of their standout products is the API Type 6BX Welding Neck Flange, which boasts a remarkable rating of 15,000 PSI, making it perfect for high-pressure applications in the oil, gas, and petrochemical sectors. Known for their precision, durability, and reliability, these flanges are crafted using cutting-edge techniques to ensure they perform consistently, even in extreme conditions. With a blend of technical know-how and rigorous quality control, Steve Flanges provides clients with products that not only meet international standards but also cater to specific project needs, solidifying their reputation as a trusted choice in Australia.
API – Type 6BX Welding Neck Flanges 15,000 PSI are manufactured using high-grade materials like carbon steel, stainless steel and alloy steel designed for severe pressure use. The Flange offers superior strength, corrosion resistance and endurance. These flanges have tensile strength of 70,000-120,000 PSI and yield strength up to 60,000 PSI. Providing structural integrity in high-pressure conditions. Benefits include improved leak prevention easy welding alignment and resistance to high temperatures and corrosive materials. Suitable for oil and gas petrochemical and offshore conditions these flanges provide long-term reliability in the toughest environments.
The API Type 6BX Welding Neck Flange rated at 15,000 PSI is usually made from high-quality carbon steel or alloy steel, often conforming to ASTM A105 or similar standards, which guarantees excellent strength and resistance to corrosion. These flanges go through rigorous heat treatment processes to boost their mechanical properties, including tensile strength, yield strength, and hardness. Built for high-pressure scenarios, they ensure dimensional stability and structural integrity even under extreme conditions. Typical mechanical properties include tensile strength ranging from 70,000 to 100,000 psi, yield strength around 36,000 to 60,000 psi, and remarkable toughness to handle mechanical stress and pressure variations in challenging industrial settings.
API Type 6BX Welding Neck Flanges rated at 15,000 PSI find extensive use in high-pressure piping systems within the oil and gas, petrochemical, and refining industries. Their sturdy design makes them perfect for connecting pipes, valves, pumps, and other equipment where strong, leak-proof joints are essential. They are frequently utilized in offshore platforms, refineries, and chemical processing plants, where reliability and safety are paramount. With their ability to withstand harsh conditions and high pressures, these flanges play a crucial role in ensuring the smooth operation of critical industrial processes.
| Specification Table Of : | API Type 6BX Flange |
| ADNOC Approved Manufacturer Of Standards | ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, MSS S44, IS 2062, ISO70051, API, API7S-43, ANSI/ASME B16.5, API7S-15 |
| Temperature Ratings | 150 LB To 2500 LB |
| Size Chart | (1/2″) To (48″) |
| Manufacturing Process |
|
| Face Type Details | Raised Face, Large Tongue & Large Male-Female And Small Male-Female, Groove And Small Tongue Groove, RTJ, Flat Face, Lap-Joint Face. |
| Forging Materials | Stainless Steel, Alloy Steel, Carbon Steel, Duplex Steel & Super Duplex Steel, Cast Iron, Inconel, Mild Steel, Hastelloy, Copper Nickel, Wrought Iron. |
| Thickness | NPS ≤ 18 |
| Flanges High Temperature | Above 200° Celsius (400°F) For 150 Class Or Above 400° Celsius (750°F) |
| JIS Standards | 5K, 10K, 40K, 16K 20K 30K, 63K |
| Our Top Selling Products | Lap Joint, Socket-Weld, Blind, Threaded, Weld Neck, Slip-On |
| Buy Flanges For Pipe Connection | Power Plants Industry Food Processing And Manufacturing Waterworks Systems Nuclear Power Application Municipal Pipe Systems Fossil Fuel Power Plants Oil And Gas Industry |
| Type Of Making Format | Plate /Forged/ Threaded |
| Bore Diameter | NPS ≤ 10 |
| Normal Pipe Sizes | Daimeter Of Flanges | Daimeter Of RTJ | Hight Of Flanges | Flanges Bolting | Flanges Hub | RING | ||||||||
| Normal Pipe Sizes | Outside Daimeter | C | K | P | T | Q | LN | BC | N | H | X | HL | JL | R / RX |
| 2-1/16″ | 215 | 3 | 124 | 95.25 | 46.1 | 38.1 | 109.5 | 165.10 | 8 | 26 | 104.8 | 60.3 | 43.7 | 24 |
| 2-9/16″ | 245 | 3 | 137 | 107.95 | 49.3 | 41.3 | 112.7 | 190.50 | 8 | 29 | 123.8 | 73.0 | 54.9 | 27 |
| 3-1/8″ | 265 | 3 | 168 | 136.53 | 55.6 | 47.7 | 125.4 | 203.20 | 8 | 32 | 133.3 | 88.9 | 67.5 | 35 |
| 4-1/16″ | 310 | 3 | 194 | 161.93 | 62.0 | 54.0 | 131.8 | 241.30 | 8 | 35 | 161.9 | 114.3 | 88.1 | 39 |
| 5-1/8″ | 375 | 3 | 229 | 193.68 | 81.0 | 73.1 | 163.5 | 292.10 | 8 | 42 | 196.8 | 141.3 | 110.3 | 44 |
| 7-1/16″ | 395 | 6 | 248 | 211.15 | 92.1 | 82.6 | 181.0 | 317.50 | 12 | 39 | 228.6 | 168.3 | 132.6 | 46 |
| 9″ | 485 | 6 | 318 | 269.88 | 103.2 | 92.1 | 223.8 | 393.70 | 12 | 45 | 292.1 | 219.1 | 173.8 | 50 |
| 11″ | 585 | 6 | 371 | 323.85 | 119.1 | 108.0 | 265.1 | 482.60 | 12 | 51 | 368.3 | 273.1 | 216.7 | 54 |
API – Type 6BX Welding Neck Flanges 15,000 PSI are critical in high-pressure applications in the oil and gas, petrochemical and offshore sectors. They are applied in wellheads blowout preventers and subsea drilling equipment, offering strong connections for pressure vessels and pipelines. Their high-pressure rating makes them suitable for applications that demand maximum leak resistance and structural integrity under harsh conditions. These flanges also find application in flow control applications in refineries, chemical plants, and power generation equipment where safety and durability are essential. Harsh environment use is facilitated by them withstanding high temperatures and corrosive substances for reliable performance in severe conditions.
| NPS In Inch. | DN In MM | Flange Outside Daimeter A In MM | Flange Thickness D In MM | API 6a SORF Flange Weight In KG | API 6a WN Flange Weight In KG | API 6a BLRF Flange Weight In KG |
| 1/ 2 | 15 | 88.9 | 11.2 | 0.4 | 0.5 | 0.4 |
| 3/ 4 | 20 | 98.6 | 12.7 | 0.6 | 0.7 | 0.6 |
| 1 | 25 | 108 | 14.2 | 0.8 | 1 | 0.9 |
| 1 1/ 4 | 32 | 117.3 | 15.7 | 1 | 1.3 | 1.2 |
| 1 1/ 2 | 40 | 127 | 17.5 | 1.3 | 1.7 | 1.5 |
| 2 | 50 | 152.4 | 19.1 | 2.1 | 2.6 | 2.4 |
| 2 1/ 2 | 65 | 177.8 | 22.4 | 3.3 | 4.1 | 3.9 |
| 3 | 80 | 190.5 | 23.9 | 3.9 | 4.9 | 4.9 |
| 3 1/ 2 | 90 | 215.9 | 23.9 | 4.8 | 6.1 | 6.2 |
| 4 | 100 | 228.6 | 23.9 | 5.3 | 6.8 | 7.0 |
| 5 | 125 | 254 | 23.9 | 6.1 | 8.6 | 8.6 |
| 6 | 150 | 279.4 | 25.4 | 7.5 | 10.6 | 11.3 |
| 8 | 200 | 342.9 | 28.4 | 12.1 | 17.6 | 19.6 |
| 10 | 250 | 406.4 | 30.2 | 16.5 | 24 | 28.6 |
| 12 | 300 | 482.6 | 31.8 | 26.2 | 36.5 | 43.2 |
| 14 | 350 | 533.4 | 35.1 | 34.6 | 48.4 | 58.1 |
| 16 | 400 | 596.9 | 36.6 | 44.8 | 60.6 | 76.1 |
| 18 | 450 | 635 | 39.6 | 48.9 | 68.3 | 93.7 |
| 20 | 500 | 698.5 | 42.9 | 61.9 | 84.5 | 122.0 |
| 24 | 600 | 812.8 | 47.8 | 86.9 | 115 | 185.0 |
Yes, we offer custom sizes for API – Type 6BX Welding Neck Flanges 15,000 PSIÂ to meet specific project needs. Our team at Steve Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@steveflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
