Steve Flanges is a reliable manufacturer and supplier located in Canberra, Australia, with a focus on high-performance AISI 4140 Flanges. These flanges are made from top-quality alloy steel AISI 4140, which is celebrated for its remarkable strength, toughness, and resistance to wear. Built to handle extreme pressure and temperature conditions, AISI 4140 Flanges are perfect for tough industrial applications. At Steve Flanges, every product goes through rigorous quality control and precise machining, ensuring that the flanges are durable, accurately sized, and resistant to corrosion, all while meeting international standards for reliability and longevity in critical engineering systems.
AISI 4140 Flanges are crafted from chromium-molybdenum alloy steel, which contains about 0.40% carbon, 0.8–1.1% chromium, and 0.15–0.25% molybdenum. This specific blend gives them outstanding mechanical properties, including high tensile and yield strength, excellent toughness, and good fatigue resistance. These flanges also show impressive resistance to impact, abrasion, and deformation. Heat treatment processes like quenching and tempering further boost their hardness and stability, making them ideal for high-stress and high-temperature environments while ensuring reliable performance and structural integrity.
| Size Chart | 1/2″ to 48″ |
|---|---|
| Pressure Rating | Class 150, 600, 300, 1500, 900, 2500 LBS |
| Pressure Calculation in DIN | 6/ 16/ 10/ 40/ 25Bar / PN6 PN16 PN10 PN40 PN25 PN64 |
| JIS | 5K, 16 K, 10 K, 30 K, 20 K, 63 K, 40 K |
| UNI | 6/ 16/ 10/ 40/ 25Bar |
| EN | 6/ 16/ 10/ 40/ 25Bar |
| Flange Face Type | Lap-Joint Face, Large Male-Female, Raised Face, Flat Face, Small Tongue, Small Male-Female, Ring Type Joint, Large Tongue & Groove Flanges manufacturer and Supplier |
| Flanges Marking | All Flanges are marked as follows: Supplier or Manufacturer’s Name, Size, Class, Bore, Dimension, Material, Heat No. Or according to the customer’s request. |
| Element | Content |
|---|---|
| Chromium | 0.80 Tp 1.10 |
| Manganese | 0.75 Tp 1.0 |
| Silicon | 0.15 To 0.30 |
| Carbon | 0.380 To 0.430 |
| Molybdenum | 0.15 To 0.25 |
| Sulfur | 0.040 |
| Phosphorous | 0.035 |
| Iron | Balance |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 655 MPa | 95000 psi |
| Bulk modulus | 140 GPa | 20300 ksi |
| Yield strength | 415 MPa | 60200 psi |
| Shear modulus | 80 GPa | 11600 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elastic modulus | 190-210 GPa | 27557-30458 ksi |
| Elongation at break (in 50 mm) | 25.70% | 25.70% |
| Hardness, Knoop | 219 | 219 |
| Hardness, Rockwell B | 92 | 92 |
| Hardness, Brinell | 197 | 197 |
| Hardness, Rockwell C | 13 | 13 |
| Machinability | 65 | 65 |
| Hardness, Vickers | 207 | 207 |

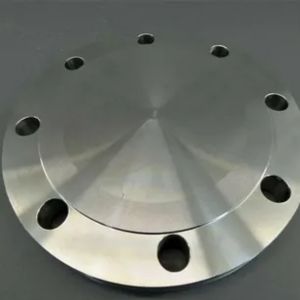

Steve Flanges, a leading supplier in Canberra, Australia, offers an extensive selection of AISI 4140 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
AISI 4140 Flanges are widely used in industries that require high-strength, durable components for heavy-duty applications. Common uses include automotive, aerospace, oil & gas, and power generation sectors, where they are employed in high-pressure systems, piping, and machinery. These flanges are essential for connecting pipes, valves, and other equipment in critical systems such as hydraulic systems, pressure vessels, and fuel lines. Their exceptional strength, wear resistance, and ability to withstand harsh conditions make AISI 4140 flanges ideal for ensuring reliable and long-lasting connections in demanding environments.
Yes, we offer custom sizes for AISI 4140 Flanges to meet specific project needs. Our team at Steve Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@steveflanges.com.
| STANDARD | UNS | WERKSTOFF NR. |
| AISI 4140 | G41400 | 1.7225 |
AISI 4140 Flanges find their place in various industries, including oil and gas, power generation, petrochemical, automotive, and heavy machinery. They are perfect for connecting pipelines, valves, and pressure vessels in systems where strength and durability are essential. Additionally, these flanges are utilized in hydraulic systems, gear manufacturing, and drilling equipment due to their ability to endure mechanical stress and resist corrosion. Their versatility, long lifespan, and excellent mechanical properties make AISI 4140 Flanges a top choice for robust and efficient industrial piping solutions.
